TPS22968NQDMGRQ1

具有可调节上升时间和输出放电功能的 2 通道、5.5V、4A、27mΩ 汽车负载开关 10-WSON -40 to 125

The TPS22968x-Q1 is a small, dual-channel load switch with configurable rise time. The device contains two N-channel MOSFETs that can operate over an input voltage range of 0.8 V to 5.5 V and can support a maximum continuous current of 4-A per channel. Each switch is independently controlled by an on/off input ON1 and ON2, which is capable of interfacing directly with low-voltage control signals. The TPS22968-Q1 includes a 270 Ω on-chip resistor for quick output discharge when the switch is turned off.

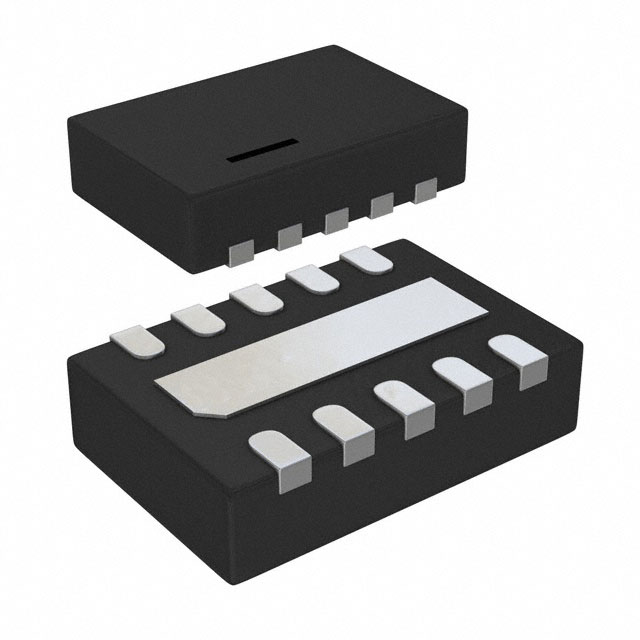

The TPS22968x-Q1 is available in a small, space-saving package DMG with wettable flanks and an integrated thermal pad. The wettable flanks allow for visual solder inspection. The device is characterized for operation over the free-air temperature range of –40 to +125°C.
