TEH70P1K00JE

1kΩ ±5% 70W ±50ppm/℃

**Electrical Specifications. Resistance Tolerance:** ±5%. **Max. Working Voltage:** 500 VDC or ohms low limited. **Electrical Derating:** Linear, 100% at 25°C to 0% at 150°C. **Insulation Resistance:** 400M Ohms. **Short Time Overload:** 2× rated power for 5 sec, not to exceed 1.5× max. working voltage. **Temperature Coefficient:** **2Ω to 10Ω:** ±100 ppm, **10Ω to 10 KΩ:** ±50 ppm.

**Features

**

* 70 Watt Power Rating at 25°C Case Temperature**

**

* Non-Inductive Performance**

**

* Low Thermal Resistance**

**

* RoHS Compliant Design**

**

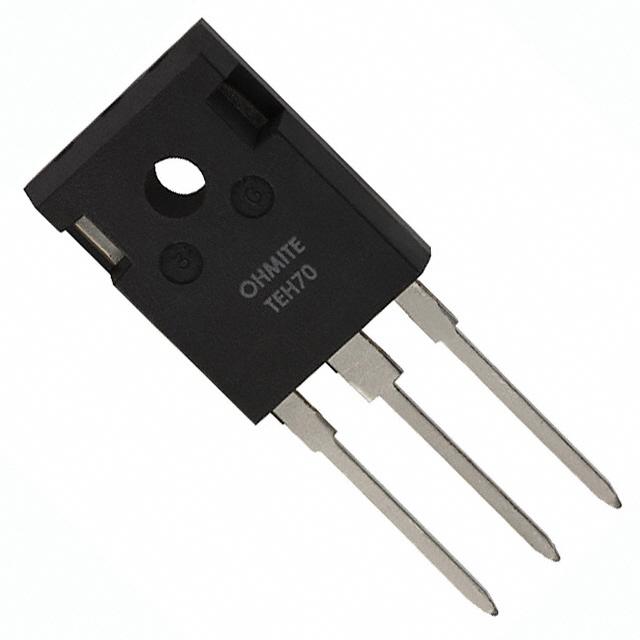

* Two or Three Terminals Versions Available**

**

* Heat Sink Can Be Grounded Through Middle Terminal P Style**

Specifications

**

* Material Resistor: Thick Film on Alumina**

**

* Lead: Solder Coated Phosphor Bronze**

**

* Solder: Lead Free**

**

* Case: High-Temperature Plastic**

**

* P Package: Middle Terminal Is Electrically Connected to Header and Insulated from Left and Right Terminals**

**

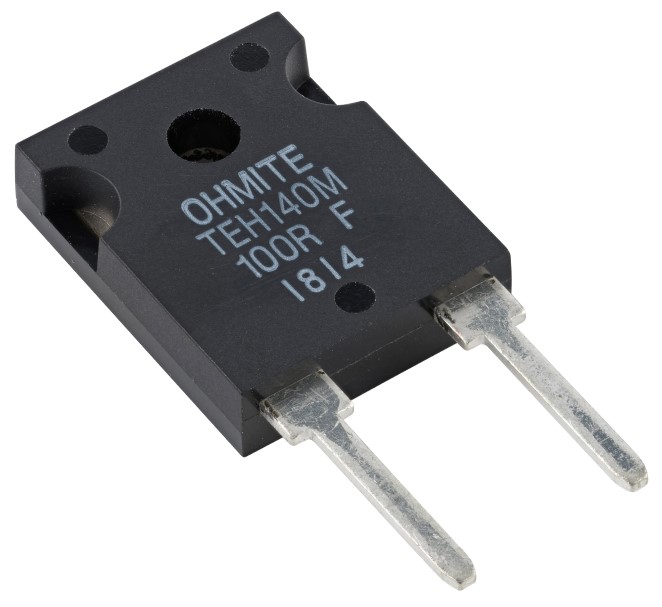

* M Package: No Middle Terminal
