开关稳压器 A 595-TPS630701RNMT
The TPS6307x is a high efficiency, low quiescent current buck-boost converter suitable for applications where the input voltage can be higher or lower than the output voltage. Output currents can go as high as 2 A in boost mode and in buck mode. The buck-boost converter is based on a fixed frequency, pulse-width-modulation PWM controller using synchronous rectification to obtain maximum efficiency. At low load currents, the converter enters Power Save Mode to maintain high efficiency over a wide load current range. The converter can be disabled to minimize battery drain. During shutdown, the load is disconnected from the battery. The device is available in a 2.5 mm × 3 mm QFN package.
输出接口数 1
输出电压 5 V
输出电流 2 A
静态电流 50.0 µA
开关频率 2.4 MHz
开关电流 3.6 A
输入电压Max 16 V
输入电压Min 2 V
输出电压Min 5 V
输出电流Max 2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 2V ~ 16V
安装方式 Surface Mount
引脚数 15

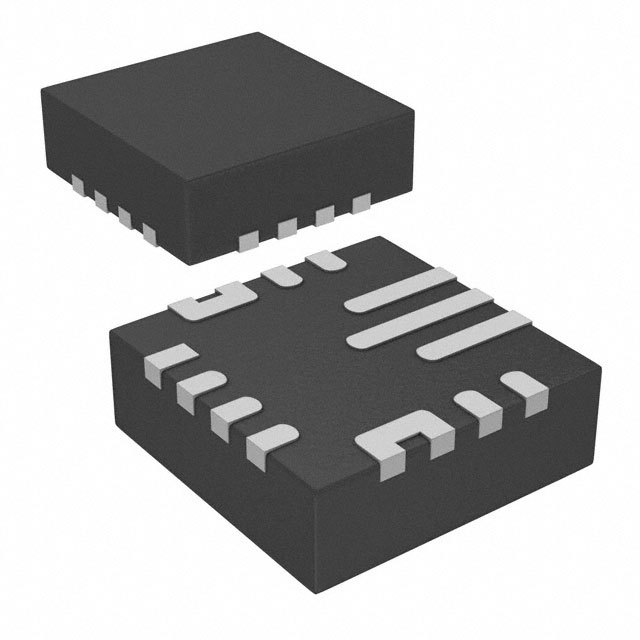

封装 VQFN-15
封装 VQFN-15
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS630701RNMR TI 德州仪器 | 当前型号 | 当前型号 |
TPS630701RNMT 德州仪器 | 类似代替 | TPS630701RNMR和TPS630701RNMT的区别 |
