霍尔效应开关, 单极性, 0.0075 T, 0.005 T, 3 V, 5.5 V, SOT-23
Description:
TLI496x-xM is an integrated Hall effect sensor specially designed for highly accurate
applications. The sensor provides an easy-to-use and cost effective solution for position
sensing applications, requiring high temperature stability of the magnetic threshold.
Target applications for the TLI496x-xM Hall switch family are all applications requesting
a precision Hall latch or Hall switch with an operating temperature from -40 °C to 125 °C.
Summary of Features:
输出电流Max 5 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 3V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 3 V
引脚数 3

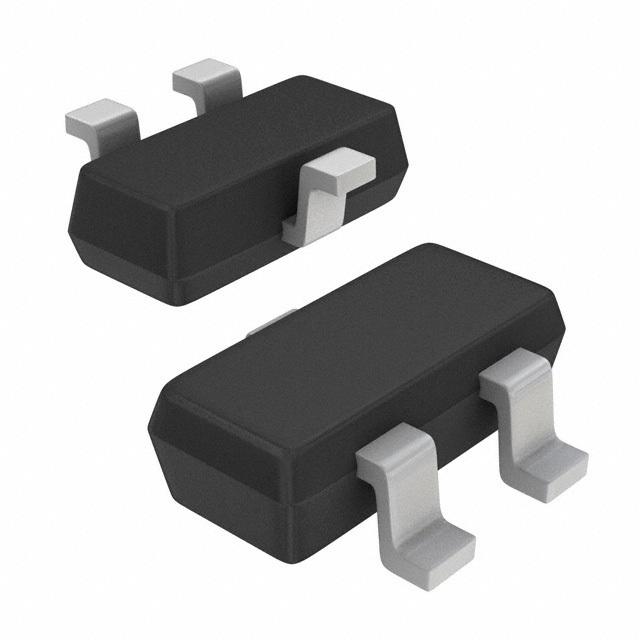

封装 SOT-23-3
封装 SOT-23-3
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Open/close detection, Index counting applications with a pole wheel, Rotor position detection BLDC motors
RoHS标准 RoHS Compliant
含铅标准 无铅
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLI49655MXTSA1 Infineon 英飞凌 | 当前型号 | 当前型号 |
