TLI49631MXTSA1

板机接口霍耳效应/磁性传感器 POSITION&CURRENT; SENSORS

Description:

TLI496x-xM is an integrated Hall effect sensor specially designed for highly accurate

applications. The sensor provides an easy-to-use and cost effective solution for position

sensing applications, requiring high temperature stability of the magnetic threshold.

Target applications for the TLI496x-xM Hall switch family are all applications requesting

a precision Hall latch or Hall switch with an operating temperature from -40 °C to 125 °C.

Summary of Features:

.

3.0 V to 5.5 V operating supply voltage

.

„„Low current consumption 1.4 mA

.

„„ESD protection 4 kV HBM

.

„„Active error compensation chopped

.

High stability of magnetic thresholds

.

„„Low jitter typ. 0.35 μs

.

Operating temperature range from -40 °C to 125 °C

.

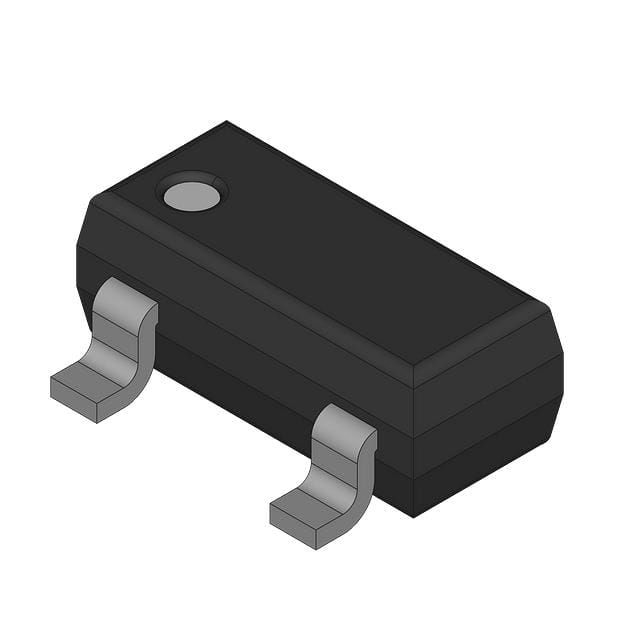

„„Small SMD package SOT23

.

„„JESD47 qualified
