TBS2104

TEKTRONIX  TBS2104  示波器, TBS2000 Series, 4x 模拟, 100 MHz, 1 GSPS, 20 Mpts 新

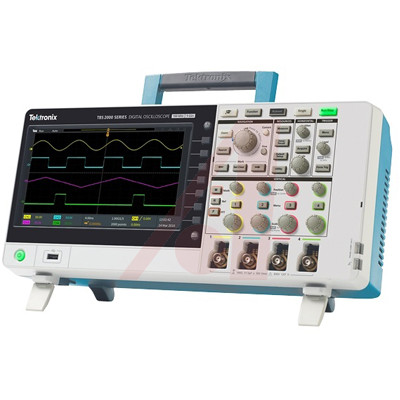

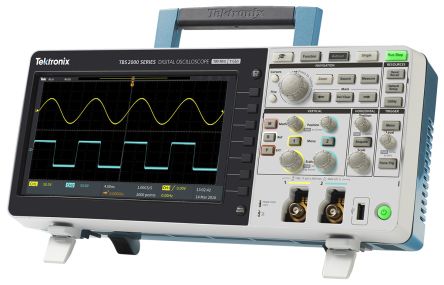

The from is a TBS2000 series digital storage oscilloscope with 100MHz bandwidth and 2 analogue channels. This oscilloscope captures and displays significantly more signal to help to evaluate designs faster with 9inch WVGA display, 20 million point record length and 1GS/s sample rate. It easily and confidently analyzes signals with new on-waveform cursor readouts and 32 automated measurements each with informative tips. The TekVPI probe interface works with traditional BNC connections but also enables wide application coverage with latest active voltage probes and current probes. Fully compatible with TekSmartLab lab management software for education. The TBS2104 is designed for easy operation and quick hands-on learning. Complies with UL61010-1:2004, CAN/CSA-C22.2 number, 61010.1: 2004; EN61010-1:2001, low voltage directive 2004/108/EC for product safety. It has 9inch 228mm wide format liquid crystal TFT colour display.

.

Designed for outstanding waveform visualization and analysis

.

15 horizontal grids show 50% more signal, versatile triggering and acquisition modes

.

Built-in tips for faster setup and HelpEverywhere provides helpful on-screen tips

.

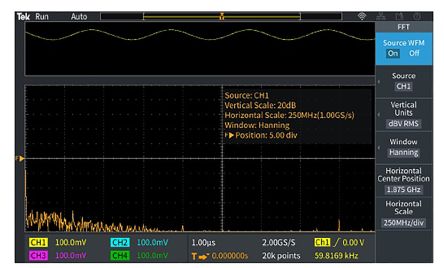

32 automated measurements and FFT function for thorough waveform analysis

.

Power source voltage of 100VAC to 240VAC RMS ±10% and 0°C to 50°C operating temperature

.

Channel to channel isolation of >=100:1 at

.

USB 2.0 host port on front panel and USB 2.0 device port on rear panel

.

Wi-Fi interface provides wireless communications capability

.

LXI compliant 10/100BASE-T Ethernet port for remote control over LAN

.

Dimension is 412.8mm x 128.1mm x 201.5mm W x D x H and weight is 4.17Kg standalone instrument
