Optocoupler Logic-Out Open Collector DC-IN 1CH 5Pin SO
PDP Plasma Display Panel
FA Factory Automation
Interfaces of measuring and control instruments
Operate at high ambient temperatures up to 125°C
The consists of GaAℓAs infrared light emitting diodes and integrated high-gain, high-speed photodetectors. The TLP118 is housed in the SO6 package. The output stage is an open collector type.
The photodetector has an internal Faraday shield that provides a guaranteed common-mode transient immunity of ±15 kV/μs.

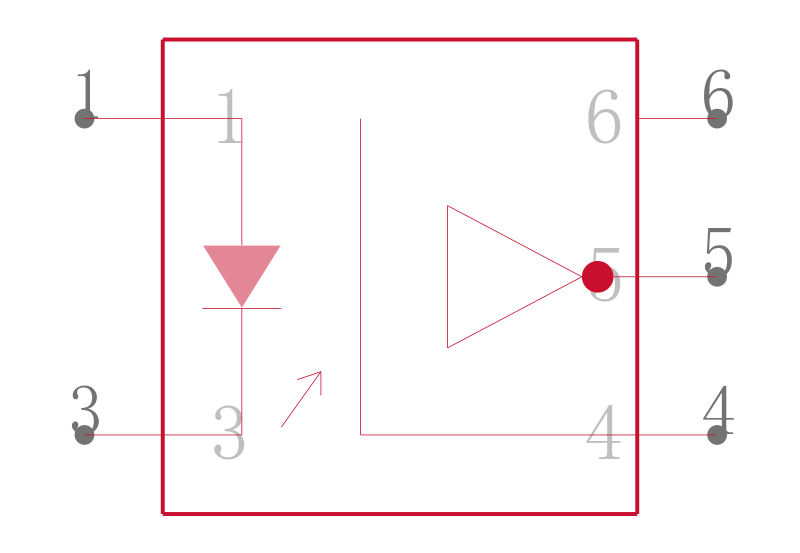

Inverter logic type Open collector output

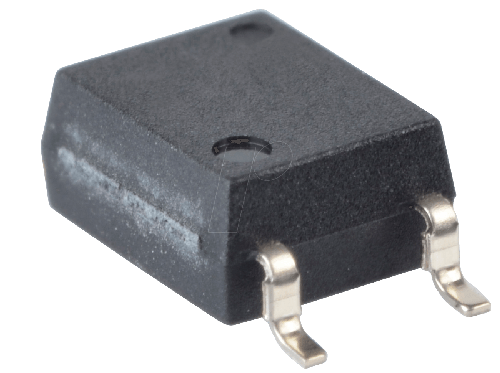

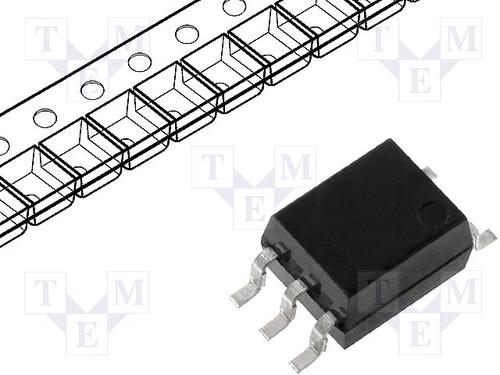

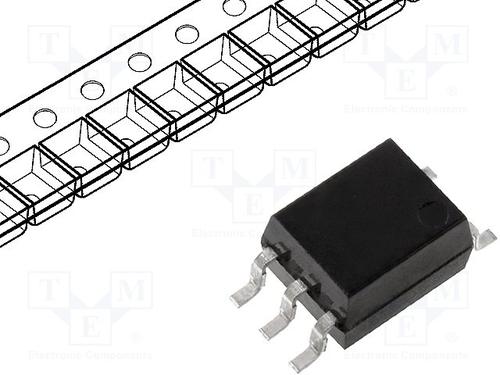

Package: SO6 pin
Guaranteed performance over: -40 to 125°C
Power supply voltage: 4.5 to 5.5 V
Input threshold current: IFH = 5.0 mA max
Propagation delay time tpHL/tpLH: 60 ns max
Common-mode transient immunity: ±15 kV/μs min
Isolation voltage: 3750 Vrms min
UL approved : UL1577, File No.E67349
cUL approved: CSA Component Acceptance Service No. 5A, File No.E67349
