TDA1308T

AB类立体声耳机驱动器 Class-AB stereo headphone driver

General description

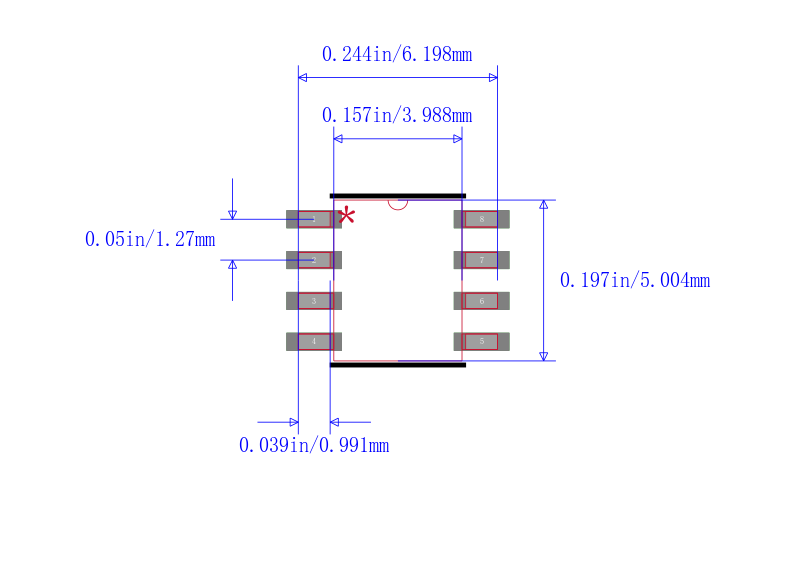

The TDA1308; TDA1308A is an integrated class-AB stereo headphone driver contained in an SO8, DIP8 or a TSSOP8 plastic package. The TDA1308AUK is available in an 8 bump wafer level chip-size package WLCSP8. The device is fabricated in a 1µm Complementary Metal Oxide Semiconductor CMOS process and has been primarily developed for portable digital audio applications.

Features

Wide temperature range

No switch ON/OFF clicks

Excellent power supply ripple rejection

Low power consumption

Short-circuit resistant

High performance

 High signal-to-noise ratio

 High slew rate

 Low distortion

Large output voltage swing
