TLE8444SL

IC

Description:

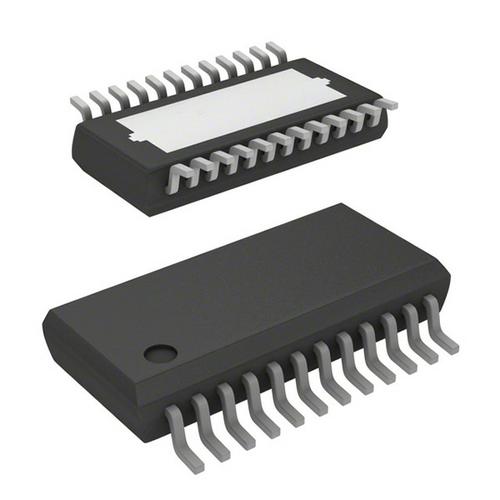

The TLE 8444SL is a protected Quad-Half-Bridge-IC targeted towards automotive and industrial motion control applications. It is a monolithic die based on ’s smart mixed technology SPT which combines bipolar and CMOS control circuitry with DMOS power devices. DC-Motors can be driven in forward cw, reverse ccw, brake and high impedance modes where as Stepper- Motors can be driven in No-Current, negative / positive output current modes. These various modes can easily be achieved via standard parallel interface of the device to a microcontroller. The PG-SSOP-24-7 package is advantageous as it saves PCB-board space and costs. The integrated short circuit and over-temperature protection as well as it’s built-in diagnosis features such as over- and under voltage-lockout and open load detection improves system reliability and performance.

Summary of Features:

.

4 Half-Bridge Power Outputs 1.3Ω RDSONMAX @ Tj=150°C

.

Minimum Overcurrent Shutdown at 0.9A

.

Simple parallel interface control of Half-Bridge Outputs

.

Inverted and Non-inverted Inputs to minimize number of microcontroller connections

.

Very low current consumption in sleep mode max. 5μA

.

Error Flag Diagnosis

.

Open Load Diagnosis in ON-state for all outputs

.

Outputs protected against overcurrent

.

Over temperature protection with hysteresis

.

Over and Under voltage lockout

.

3.3V / 5V compatible inputs with hysteresis

.

No crossover current

.

Internal freewheeling diodes

.

Thermally enhanced package fused leads

.

Green Product RoHS compliant

.

AEC Qualified

Benefits:

.

Small package helps to save PCB area

.

Improved diagnosis for over- and under voltage-lockout and open load detection improve system reliabiltiy and performance

.

The device also supports stepper motor applications
