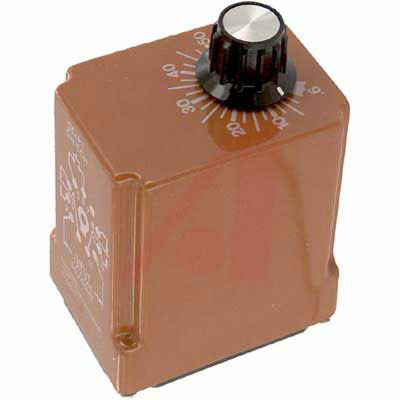

T3K-00030-461概述
Relay; E-Mech; Timing; Off Delay; DPDT; Cur-Rtg 10A; Ctrl-V 120AC; 11Pin; 0.3-30 sec
**Features:**
* Operating Voltage: 120 VAC
* Output Rating: 10 A @ 240 VAC Max.; 100 mA @ 5 VDC Min.
* DPDT Relay Output 2 Form C
* 11-Pin Socket Mount
* Operating Temperature: –23°C to +55°C
* Size H × W × D: 4.28" × 1.75" × 2.4"
Allied Electronics:
Relay; E-Mech; Timing; Off Delay; DPDT; Cur-Rtg 10A; Ctrl-V 120AC; 11 Pin; 0.3-30 sec
T3K-00030-461中文资料参数规格
技术参数
额定电流 10 A
封装参数
引脚数 11
其他
Brand/Series T3 Series
Contact Form DPDT
Current Rating 10 A
Mounting Type Socket
Number of Pins 11
Relay Type Electro Mechanical
Standards UL, cUL
Termination Plug-In
Timer Type Off Delay
Timing Range 0.3 Sec. to 30 Sec.
Voltage Rating 240/5 VAC/VDC
Voltage, Control 120VAC
符合标准
RoHS标准 Non-Compliant
在线购买T3K-00030-461
型号： T3K-00030-461
制造商：
黑金刚
描述：Relay; E-Mech; Timing; Off Delay; DPDT; Cur-Rtg 10A; Ctrl-V 120AC; 11Pin; 0.3-30 sec
