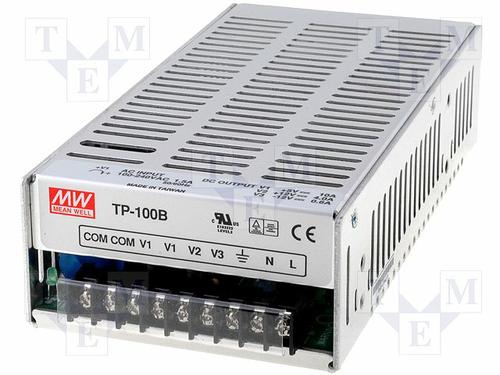

TP-100B图片3

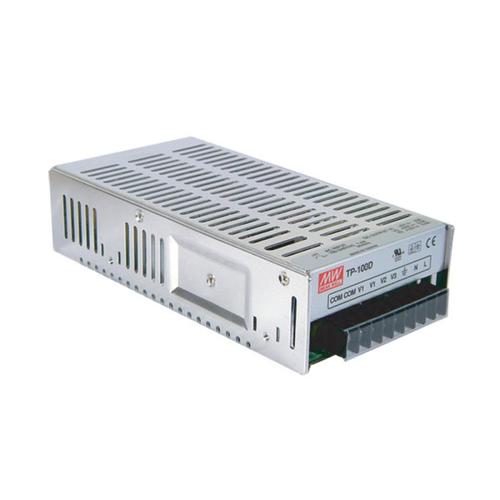

TP-100B图片4

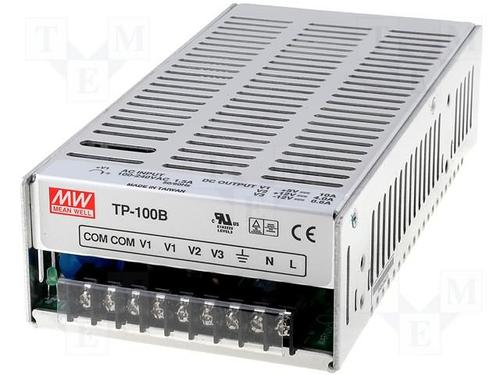

TP-100B图片5
TP-100B图片6
TP-100B图片7
TP-100B图片8

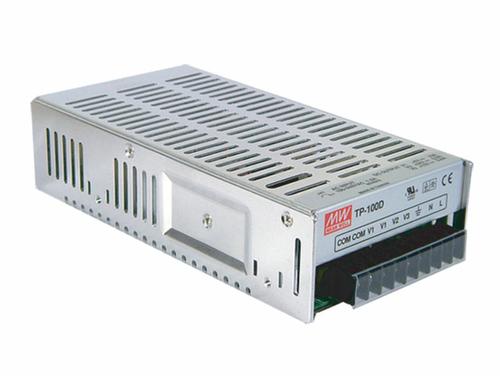

TP-100B图片9
TP-100B图片10
TP-100B图片11
TP-100B图片12
TP-100B图片13
TP-100B图片14
TP-100B概述

AC-DC Power Supply Triple-OUT 5V/12V/-12V 10A/4A/0.6A 105.2W 9Pin

AC/DC Power Supply Triple-OUT 5V/12V/-12V 10A/4A/0.6A 105.2W 9-Pin


艾睿:
Power your device with direct current by using this TP-100B AC to DC power supply from Mean-Well USA, Inc. to convert an alternating current source to a direct current supply. It has a voltage of 5|12|-12 V and maximum output power of 105.2 W. This part&s;s 3 outputs can handle a current up to 10|4|0.6 A. This part has a temperature range of -10 °C to 60 °C.


Jameco:
PWR SPLY,SW,100W,5V/10A, 12V/4A,-12V/0.6A,PFC,UL/CSA/TU


安富利:
AC/DC Power Supply Triple-OUT 5V/12V/-12V 15A/5A/1A 105.2W


Chip1Stop:
AC/DC Power Supply Triple-OUT 5V/12V/-12V 10A/4A/0.6A 105.2W 9-Pin


TME:
Pwr sup.unit: switched-mode; modular; 105.2W; 5VDC; 12VDC; -12VDC


MASTER:
AC/DC Power Supply - 3 Outputs - 5V/12V/-12V@10A/4A/0.6A - 105.2W


Online Components:
AC/DC Power Supply - 3 Outputs - 5V/12V/-12V@10A/4A/0.6A - 105.2W


CDI:
AC/DC 100W 5, 12, -12V Triple Output Power Supply, Enclosed


Electro Sonic:
AC/DC Power Supply - 3 Outputs - 5V/12V/-12V@10A/4A/0.6A - 105.2W


TP-100B中文资料参数规格
技术参数

额定功率 105.2 W

输出接口数 3

输出电压 5 VDC

输出功率 105.2 W

输入电压DC Max 370 V

输入电压DC Min 127 V

输入电压AC Max 264 V

输入电压AC Min 90 V

输入电流Min 1.5 A

输出功率Max 105.2 W

工作温度Max 60 ℃

工作温度Min -10 ℃

电源电压 90.264VAC, 127.370VDC

输入电压 90V ~ 264V

封装参数

安装方式 Chassis

引脚数 9

外形尺寸

长度 7.83 in

宽度 3.9 in

高度 1.97 in

物理参数

重量 830 g

工作温度 -10℃ ~ 60℃

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8504409520

数据手册

在线购买TP-100B
型号: TP-100B
制造商: Mean Well 台湾明纬
描述:AC-DC Power Supply Triple-OUT 5V/12V/-12V 10A/4A/0.6A 105.2W 9Pin
