TC7W74FK

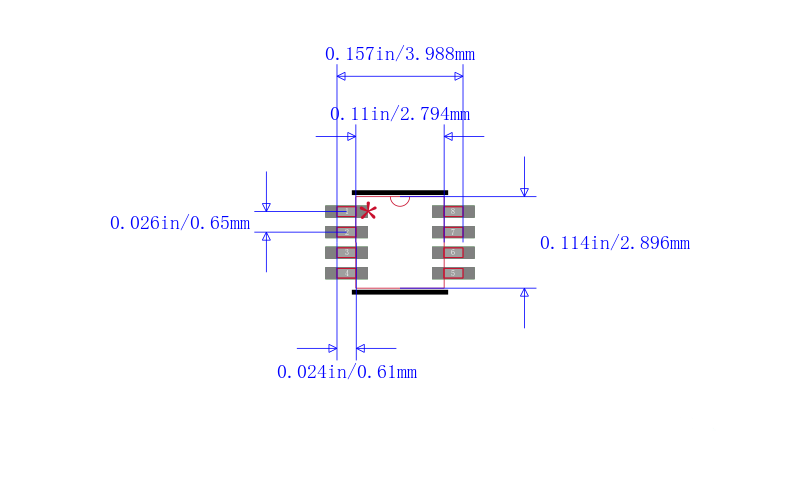

IC 上升沿触发器 TC7W74FK VFSOP8 marking/标记 W74

逻辑类型Logic Type| 设置（预设）和复位 SetPreset and Reset \---|--- 电路数Number of Circuits| D型 D-Type 输入数Number of Inputs| 差分 Differential 电源电压VccVoltage - Supply| 1 静态电流IqCurrent - Quiescent Max| 1 输出高，低电平电流Current - Output High, Low| 67MHz 低逻辑电平Logic Level - Low| 13ns 高逻辑电平Logic Level - High| 正边沿 Positive Edge 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 5.2mA，5.2mA Description & Applications| 2 V ~ 6 V 描述与应用| D-Type flip flop with preset and clear Features • High speed: fMAX = 170 MHz typ. at VCC = 5V • Low power dissipation: ICC = 2μA max at Ta = 25°C • High noise immunity: VNIH = VNIL = 28% VCC min • 5.5-V tolerant inputs • Balanced propagation delays: tpLH −∼ tpHL • Wide operating voltage range: VCC = 2 to 5.5V
