TC7SU04FU

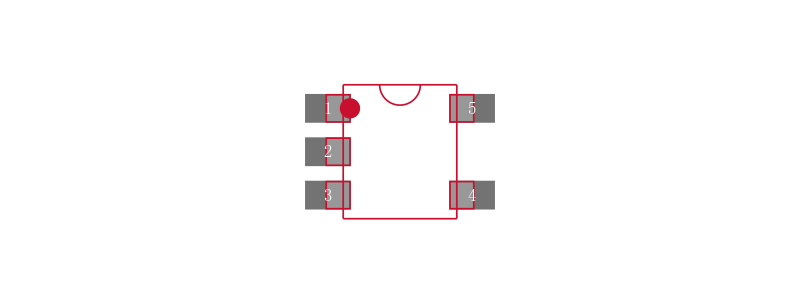

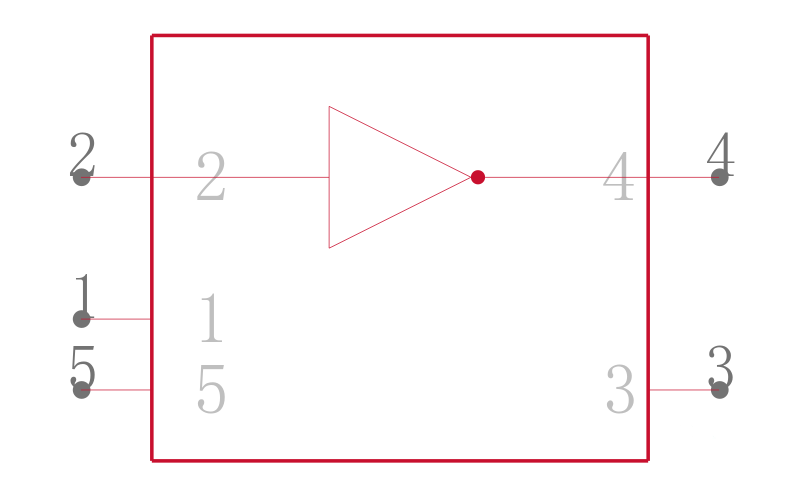

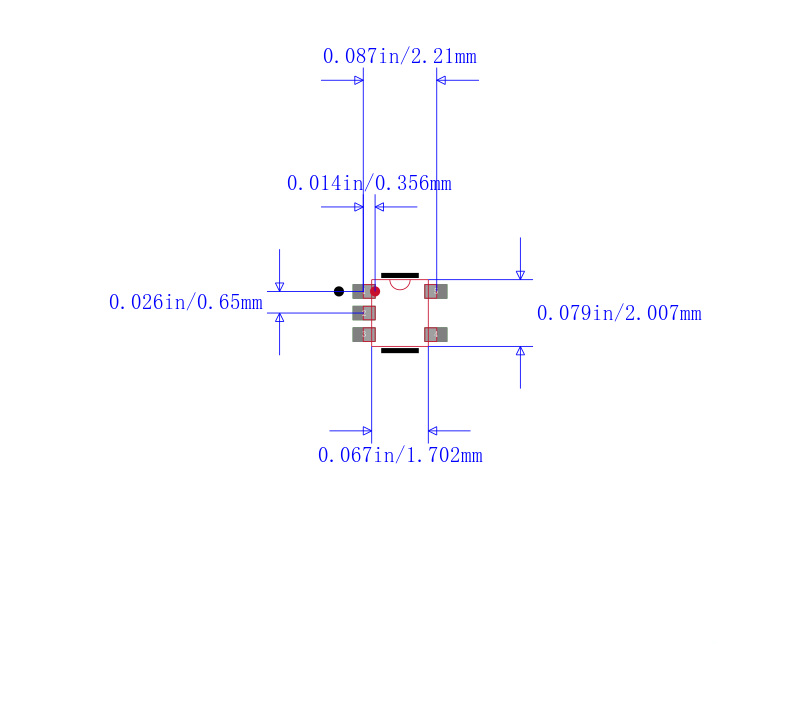

IC 反相器 TC7SU04FU SOT-353/USV marking/标记 E6

逻辑类型Logic Type| 反相器 Inverter \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 1 电源电压VccVoltage - Supply| 2v~6v 静态电流IqCurrent - Quiescent Max| 1µA 输出高，低电平电流Current - Output High, Low| -2.6mA,2.6mA 低逻辑电平Logic Level - Low| 0.3 V ~ 1.2 V 高逻辑电平Logic Level - High| 1.7 V ~ 4.8 V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 17ns @ 6V，50pF Description & Applications| Inverter ；High speed: tpd = 7 ns typ. at VCC = 5 V • Low power dissipation: ICC = 1 μA max at Ta = 25°C • High noise immunity: VNIH = VNIL = 28% VCC min • Output drive capability: 5 LSTTL loads • Symmetrical output impedance: |IOH| = IOL = 2 mA min • Balanced propagation delay time: tpLH −∼ tpHL • Wide operating voltage range: VCC opr = 2 to 6 V 描述与应用| 逆变器;高速：TPD =7纳秒（典型值），VCC= 5 V •低功耗：ICC=1μA（最大值）在大= 25°C •高噪声，免疫力：VNIH= VNIL=28％VCC（分钟） •输出驱动能力：5个输入通道负载 •对称的输出阻抗：| IOH= IOL= 2 mA（分钟） •平衡传输延迟时间：TPLH - 〜TPHL •宽工作电压范围：VCC（OPR）=2到6 V
