TC7SZ04F

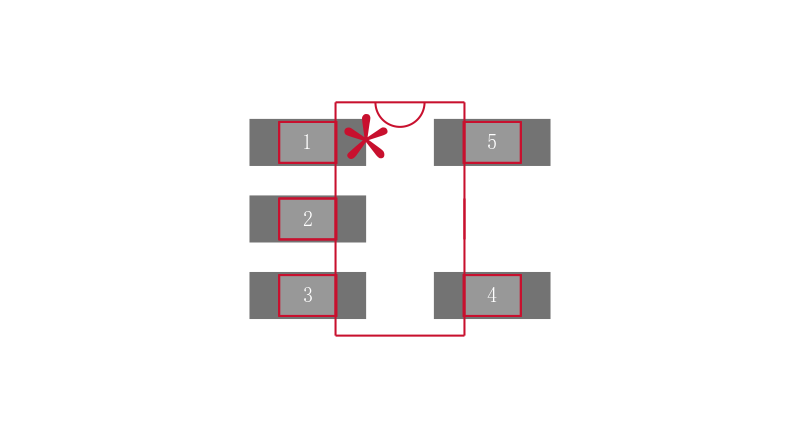

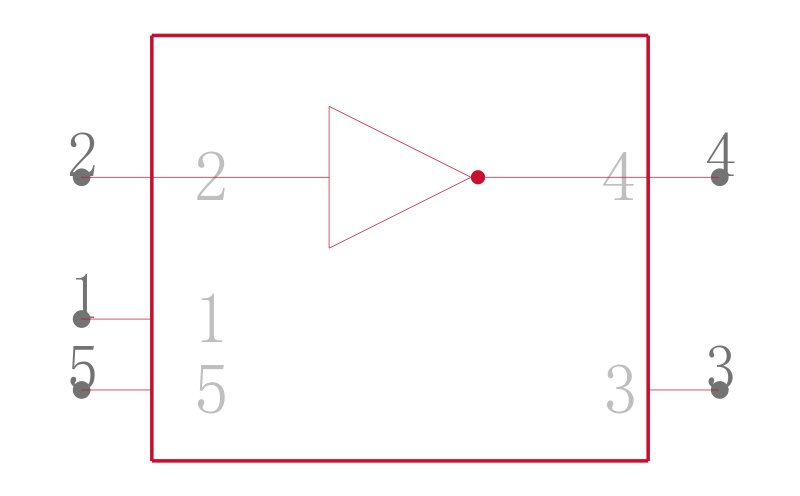

IC 反相器 TC7SZ04F SOT-153/SMV marking/标记 J5

逻辑类型Logic Type| 反相器 Inverter \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 1 电源电压VccVoltage - Supply| 1.8V~5.5V 静态电流IqCurrent - Quiescent Max| 2µA 输出高，低电平电流Current - Output High, Low| -32mA,32mA 低逻辑电平Logic Level - Low| 0.12V~0.25v 高逻辑电平Logic Level - High| 0.88V~0.75V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 4.3ns @ 4.5V~5.5V，15pF Description & Applications| Inverter ；High output current : ±24 mA min at VCC = 3 V • Super high speed operation : tpd=2.4 ns typ. at VCC = 5 V, CL = 50 pF • Operation voltage range : VCC = 1.8 to 5.5 V • 5.5-V tolerant input • 5.5-V power down protection output • Matches the performance of TC74LCX series when operated at 3.3- V VCC 描述与应用| 逆变器;高输出电流：±24 mA（分钟）在VCC=3 V •超高速运转：TPD =2.4 ns（典型值）  在VCC= 5 V，CL=50 pF的 •工作电压范围：VCC = 1.8至5.5 V •5.5-V宽容输入 •5.5-V断电保护输出 •操作时的性能相匹配的TC74LCX系列 3.3-V的VCC
