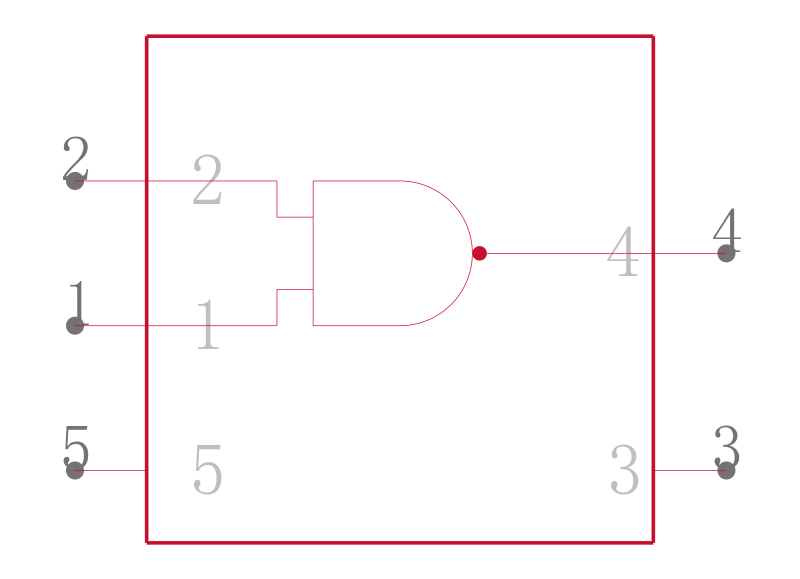

TC7SET00F

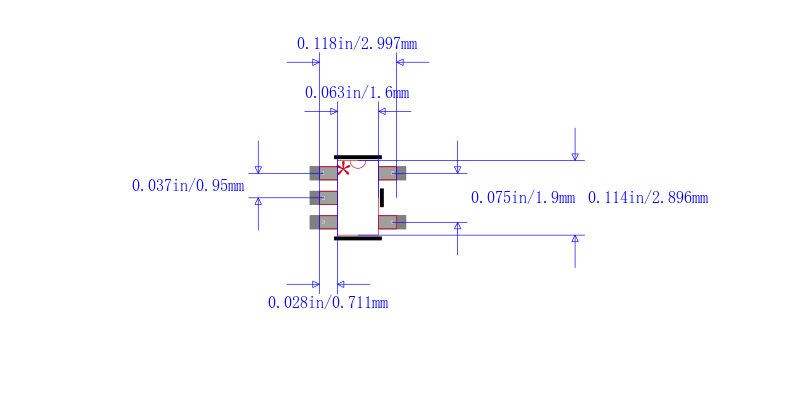

IC 与非门 TC7SET00F SOT-153/SMV marking/标记 G1

逻辑类型Logic Type| 与非门 NAND Gate \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 4.5V~5.5V 静态电流IqCurrent - Quiescent Max| 2uA 输出高，低电平电流Current - Output High, Low| -8mA,8mA 低逻辑电平Logic Level - Low| 0.8v 高逻辑电平Logic Level - High| 2V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 9ns @ 4.5V ~ 5.5V，50pF Description & Applications| 2 Input NAND Gate ;High Speed : tpd = 4.2ns typ at VCC = 5 V, CL = 15pF • Low Power Dissipation : ICC = 2μA Max at Ta = 25℃ • Compatible with TTL outputs : VIL = 0.8 V max VIH = 2.0 V min • 5.5-V tolerant inputs. • Balanced Propagation Delays : tpLH ≒ tpHL 描述与应用| 2输入与非门;High Speed : tpd = 4.2ns typ at VCC = 5 V, CL = 15pF • Low Power Dissipation : ICC = 2μA Max at Ta = 25℃ • Compatible with TTL outputs : VIL = 0.8 V max VIH = 2.0 V min • 5.5-V tolerant inputs. • Balanced Propagation Delays : tpLH ≒ tpHL
