TC74VHCT138AF

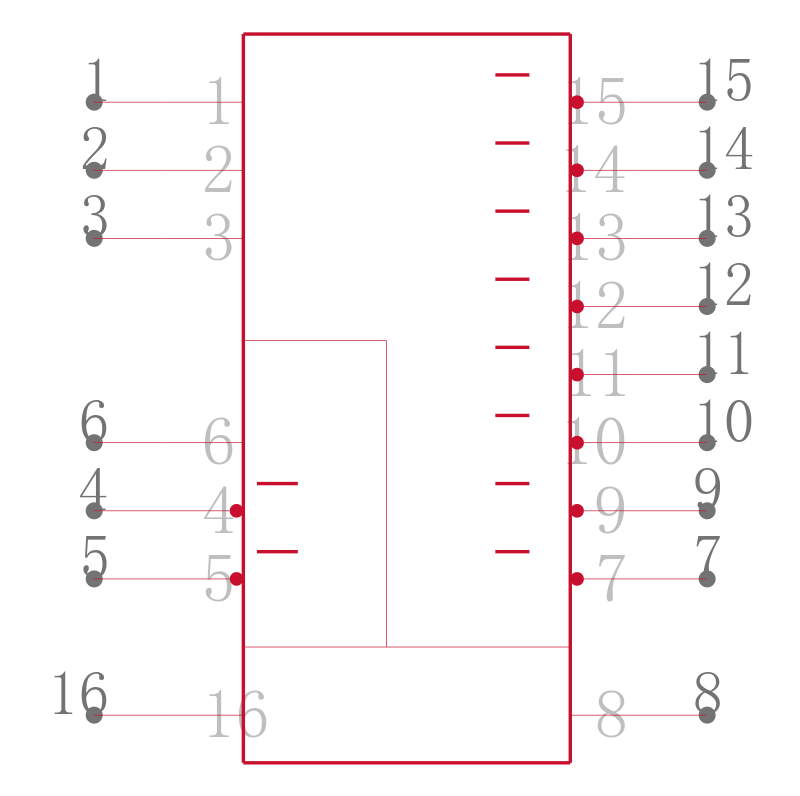

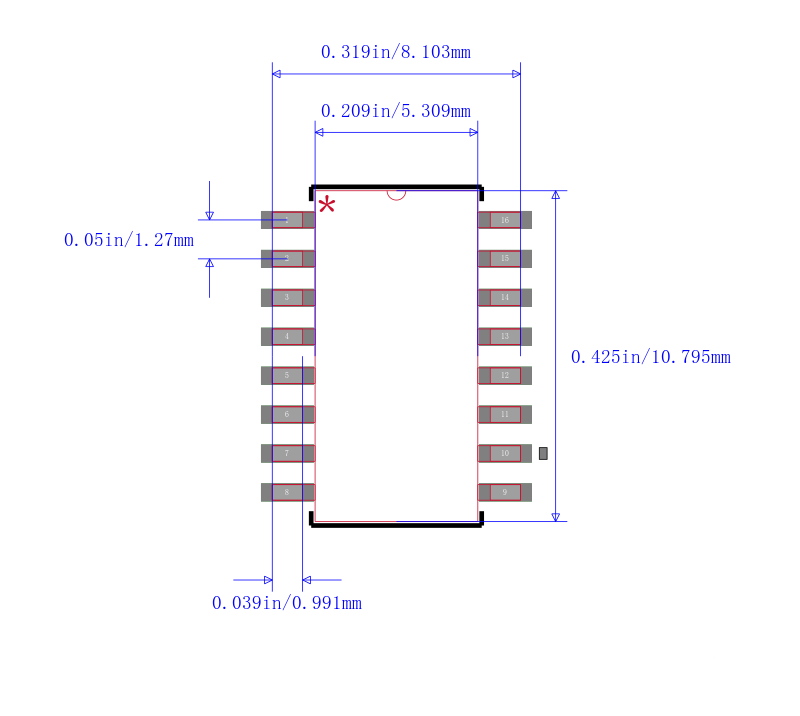

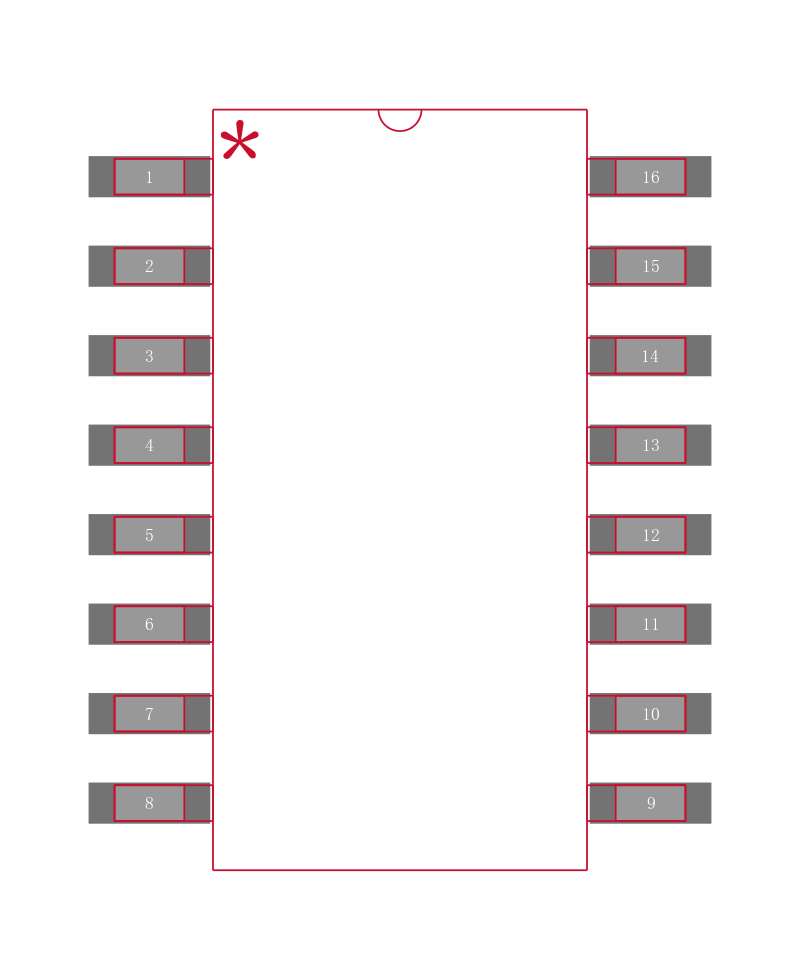

Decoder/Demultiplexer Single 3-to-8 16Pin SOP

The TC74VHCT138 is an advanced high speed CMOS 3-to-8 LINE DECODER fabricatedwith silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation.

Features

•  High speed: tpd =7.6 ns typ. at VCC =5 V

•  Low power dissipation: ICC =4 μA max at Ta =25°C

•  Compatible with TTL outputs: VIL =0.8 V max VIH =2.0 V min

•  Power down protection is provided on all inputs and outputs

•  Balanced propagation delays: tpLH∼=− tpHL

•  Pin and function compatible with the 74 series 74AC/HC/F/ALS/LS etc. 138 type.
