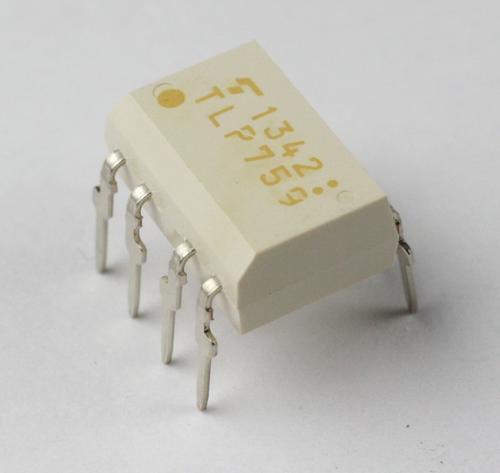

TLP759

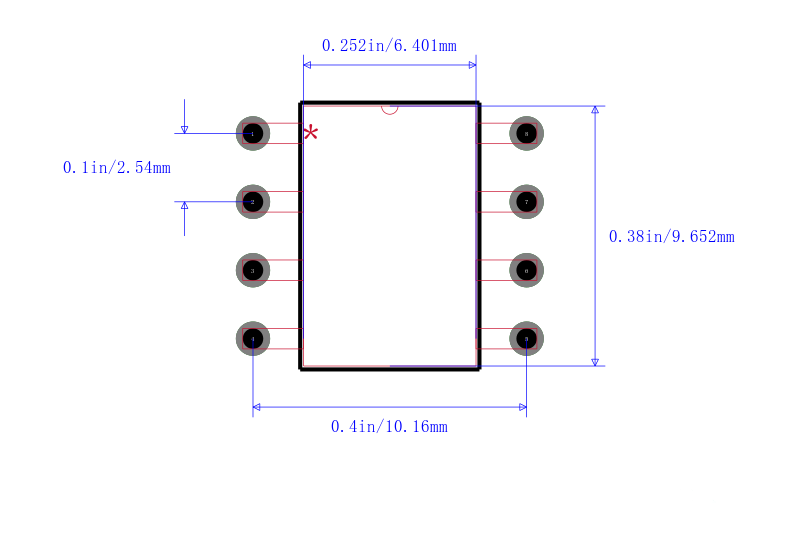

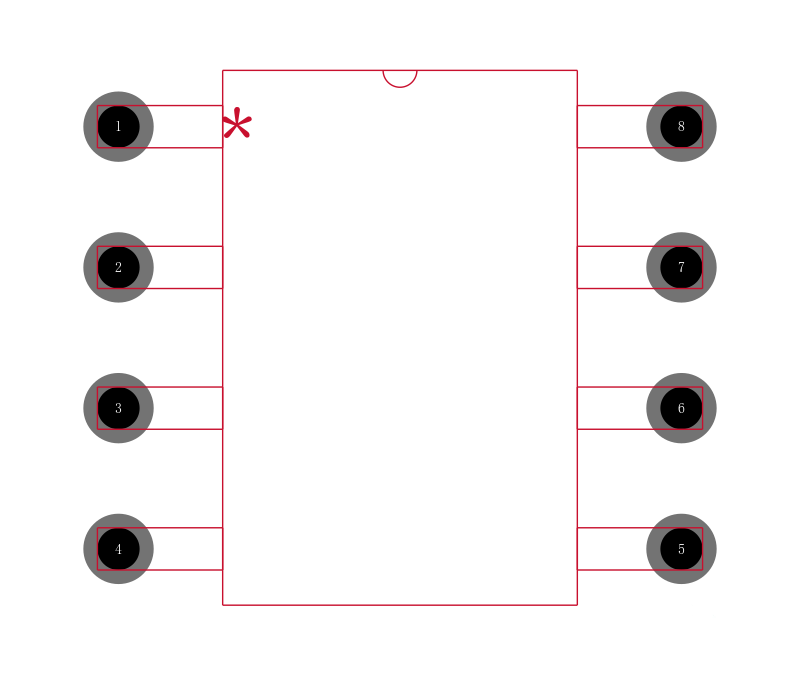

Optocoupler - IC Output, 1Channel LOGIC OUTPUT OPTOCOUPLER, 1Mbps, 11-10C4, DIP-8

Transistor Invertor

Inverter For Air Conditioner

Line Receiver

IPM Interfaces

The TOSHIBA IGM consists of a GaAℓAs high−output light emitting diode and a high speed detector of one chip photo diode-transistor. This unit is 8−lead DIP. TLP759IGM has no internal base connection, and a faraday shield integrated on the photodetector chip provides an effective common mode noise transient immunity. TLP759IGM guarantees minimum and maximum of propagation delay time, switching time dispersion, and high common mode

transient immunity. Therefor TLP759IGM is suitable for isolation interface between IPMintelligent power module and control IC circuits in motor control application.

Isolation voltage: 5000Vrmsmin.

Common mode transient immunity

: ±10kV / µs min.

@VCM= 1500 V

Switching Time : tpHL,tpLH= 0.1µs min.  = 0.8µs max.

@IF= 10mA,VCC= 15V,RL= 20kΩ,Ta = 25°C

Switching time dispersion: 0.7µs max. |tpLH-tpHL|

TTL compatible
