TPA701DGNRG4

700 - mW的MONO低压音频功率放大器 700-mW MONO LOW-VOLTAGE AUDIO POWER AMPLIFIER

description

The TPA701 is a bridge-tied load BTL audio power amplifier developed especially for low-voltage applications where internal speakers are required. Operating with a 3.3-V supply, the TPA701 can deliver 250-mW of continuous power into a BTL 8-Ωload at less than 0.6% THD+N throughout voice band frequencies. Although this device is characterized out to 20 kHz, its operation was optimized for narrower band applications such as wireless communications.

Fully Specified for 3.3-V and 5-V Operation

Wide Power Supply Compatibility 2.5 V – 5.5 V

Output Power for RL= 8 Ω

  – 700 mW at VDD= 5 V, BTL

  – 250 mW at VDD= 3.3 V, BTL

Ultralow Quiescent Current in Shutdown Mode . . . 1.5 nA

Thermal and Short-Circuit Protection

Surface-Mount Packaging

  – SOIC

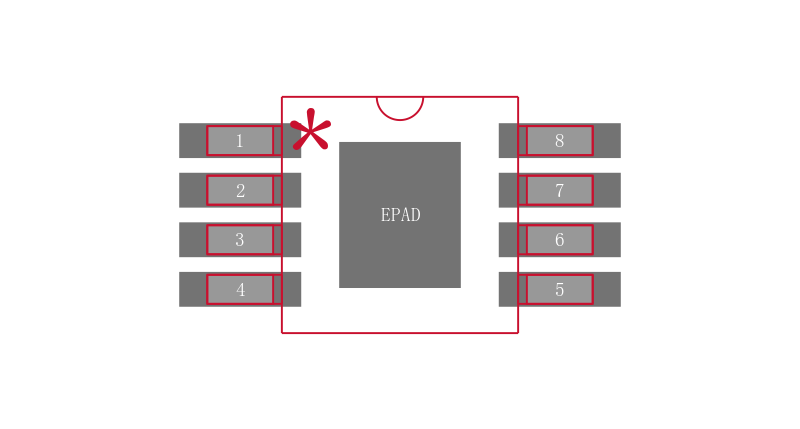

  – PowerPADMSOP
