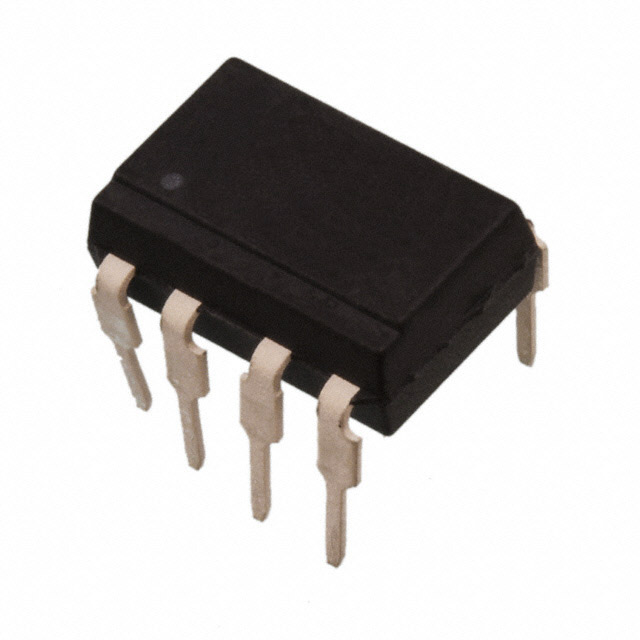

TLP321-2

Optocoupler DC-IN 2CH Transistor DC-OUT 8Pin PDIP

Programmable Controllers

DC−Output Module

Telecommunication

The TOSHIBA TLP321, −2 and −4 consist of a photo−transistor optically coupled to a gallium arsenide infrared emitting diode. The TLP321−2 offers two isolated channels in an eight lead plastic DIP package, while the TLP321−4 provides four isolated channels in a sixteen plastic DIP package.

TLP321 / −2 / −4 have high VCEO voltage VCEO = 80V.

 Collector−emitter voltage: 80V min.

 Current transfer ratio: 50% min. Rank GB: 100% min.

 Isolation voltage: 5000Vrms min.

 UL recognized: UL1577, file no. E67349
