TC74AC14F

CMOS Digital Integrated Circuit Silicon Monolithic Hex Schmitt Inverter

Hex Schmitt Inverter

The TC74AC14 is an advanced high speed CMOS SCHMITT INVERTER fabricated with silicon gate and double-layer metal wiring C2MOS technology.

It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low pwer dissipation.

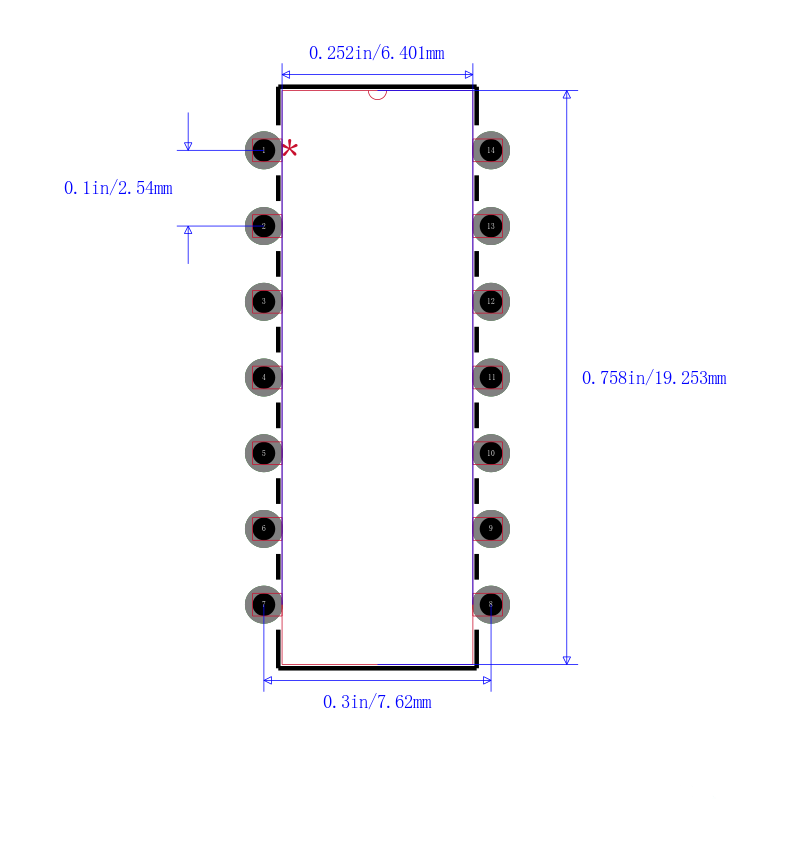

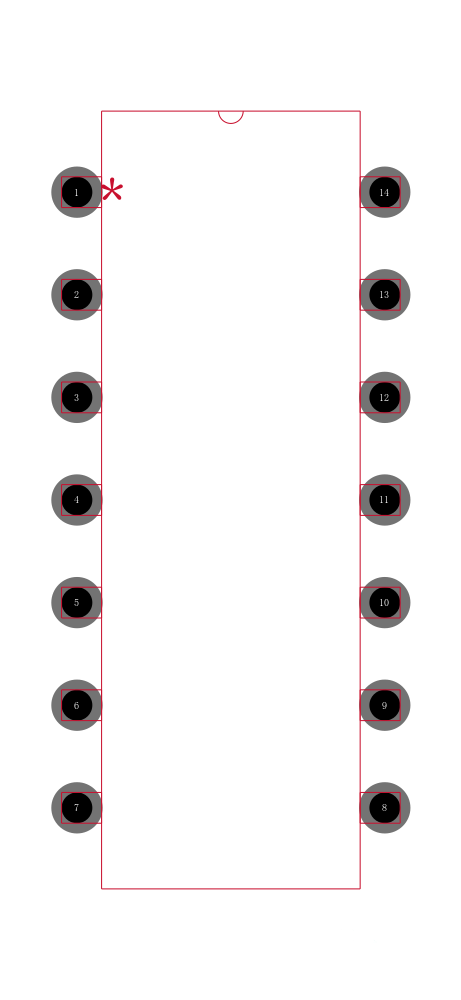

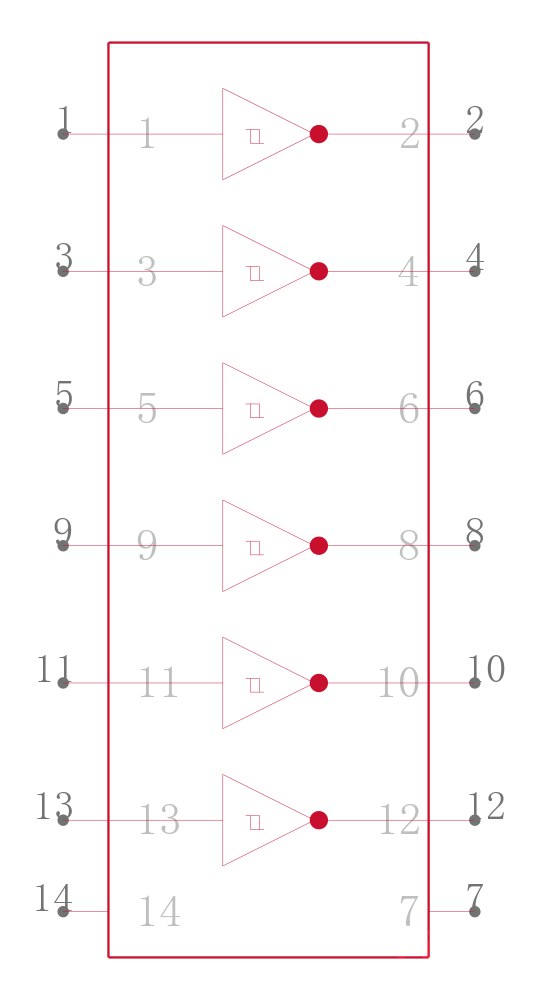

Pin configuration and function are the same as the TC74AC04 but the inputs have hysteresis and with its schmitt trigger function, the TC74AC14 can be used as a line receivers which will receive slow input signals.

All inputs are equipped with protection circuits against static discharge or transient excess voltage.

Features

• High speed: tpd = 5.3 ns typ. at VCC = 5 V

• Low power dissipation: ICC = 4 μA max at Ta = 25°C

• Symmetrical output impedance: |IOH| = IOL = 24 mA min

                                             Capability of driving 50 Ω

                                              transmission lines.

• Balanced propagation delays: tpLH ∼ − tpHL

• Wide operating voltage range: VCC opr = 2 to 5.5 V

• Pin and function compatible with 74F14
