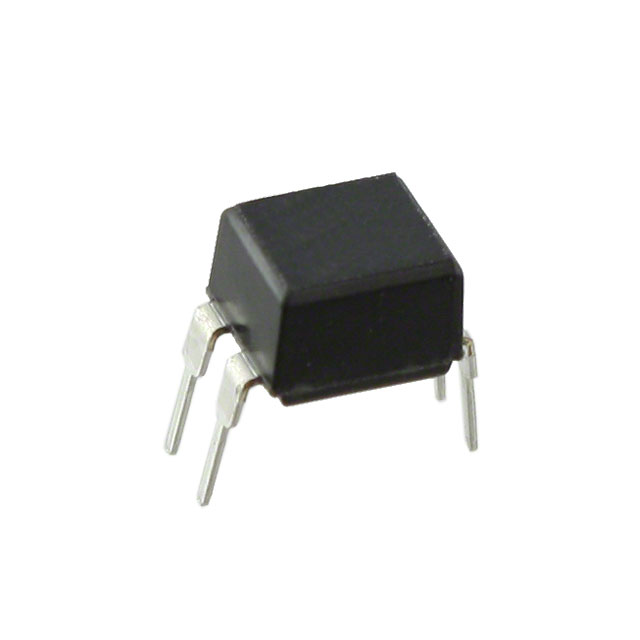

TLP227A

Relay SSR 50mA 1.3V DC-IN 0.5A 60V 4Pin PDIP

CORDLESS TELEPHONE

PBX

MODEM

The TOSHIBA series consist of a gallium arsenide infrared emitting diode optically coupled to a photo-MOS FET in a plastic DIP package.

The TLP227A series are a bi-directional switch, which can replace mechanical relays in many applications.

FEATURES

• TLP227A : 4 pin DIP DIP4

                 1 Channel Type 1 Form A

• TLP227A-2 : 8 pin DIP DIP8

                  2 Channel Type 2 Form A

• Peak Off-State Voltage : 60 V MIN.

• Trigger LED Current : 3 mA MAX.

• On-State Current : 500 mA MAX.

• On-State Resistance : 2ΩMAX.

• Isolation Voltage : 2500 Vrms MIN.

• UL Recognized : UL1577, File No. E67349
