TC74HC595AF

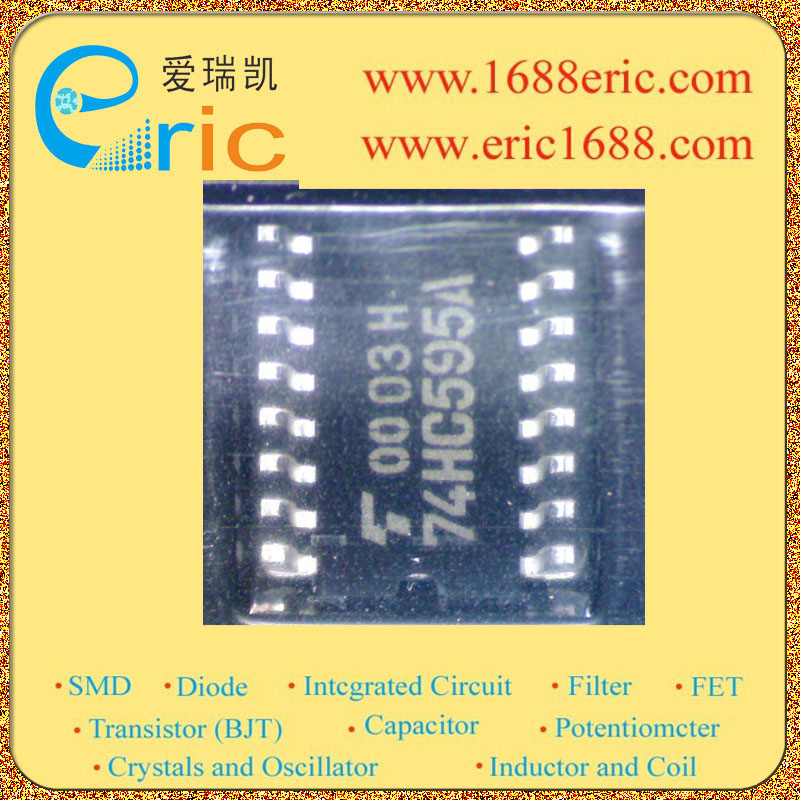

IC 移位寄存器 TC74HC595AF 16脚 marking/标记 74HC595A

逻辑类型Logic Type| 移位寄存器 Shift Register \---|--- 电路数Number of Circuits| 三态 Tri-State 输入数Number of Inputs| 1 电源电压VccVoltage - Supply| 8 静态电流IqCurrent - Quiescent Max| 串行至并行，串行 Serial to Parallel, Serial 输出高，低电平电流Current - Output High, Low| 2 V ~ 6 V 低逻辑电平Logic Level - Low| High speed Low power dissipation High noise immunity wide operating voltage range Low noise 高逻辑电平Logic Level - High| 高速 低功耗 高抗干扰 工作电压范围宽 低噪音 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| Description & Applications| 描述与应用|

贸泽:
Counter Shift Registers 8-Bit Register/Latch Tri-State

Win Source:
8-BIT SHIFT REGISTER/LATCH3-STATE
