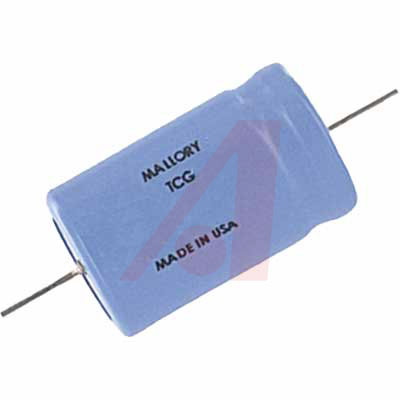

TCG500T250L1G

Cap Aluminum Lytic 50uF 250V -10% to 50% 22.2 X 34.9mm Axial 2.45Ω 607mA 85℃

Axial Leaded Capacitor, Voltage Range 250 WVDC, 300 VDC Surge, -40 to +85°C Operating Temperature

Long-life, axial leads. The TCG is a small-tubular axial version of the Mallory Type CGS capacitor. The TCG features long-life and low-ESR and utilizes a PVC insulating sleeve as well as a safety vent on diameters 0.5 inches and larger. Seventh digit of part number indicates tolerance.

.

* Specifications. Capacitance Range:** 10 to 10,000 μF. ** Voltage Range:** 10 to 450 WVDC. ** Capacitance Tolerance:** T = -10%, +50%; U = -10%, +75%. ** Operating Temperature:** -40°C to +85°C.
