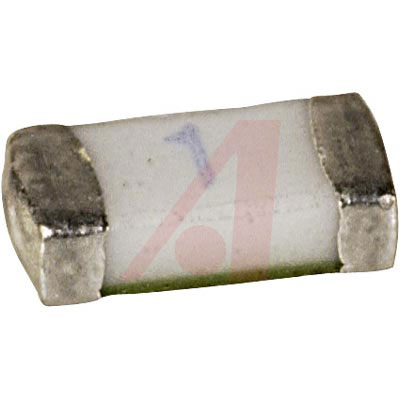

TR-3216FF-1A

Fuse; Chip; Fast Acting; 1A; Dims 0.126x0.035x0.063"; SMT; 32/63VAC/VDC; DCR 0.24Ω

Fast Acting Type, Bussmann® Subminiature Surface Mount Fuse

Bussmann SMT Chip Fuses utilize metal film for superior fusing action and enhanced reliability. The fuse element is bonded to a ceramic substrate and encapsulated with glass, providing excellent short circuit performance and environmental integrity. The end terminations are over-plated with nickel and tin-lead.

.

* Catalog Symbol:** 3216FF. ** Voltage Rating:** 32 VAC, 63 VDC. ** Interrupting Rating:** 50 amp AC/DC. ** Physical Size:** EIA SOCM-3216AC 3.2 × 1.6 × 0.90 mm 0.126" × 0.063" × 0.035". ** Agency Approvals:** UL Recognized All Ratings File E19180, Guide JDYX2; CSA Certified 1.5-3 A File 53787, Class 1422-01; CSA Component Acceptance 250-750 mA, 1 A File 53787, Class 1422-30. ** Time Current Characteristics. Fast Acting Fuse:** Will carry 100% of rated current for a minimum of four hours, and will open within five seconds at 250% of rated current.
