TLC320AD77CDBRG4

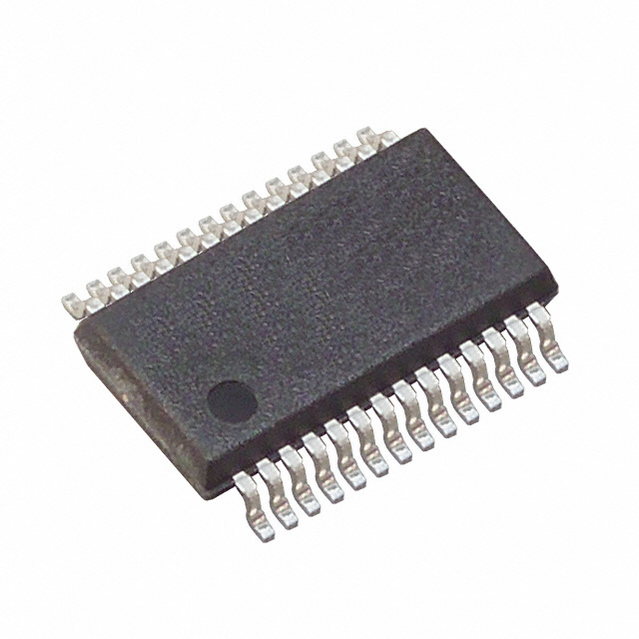

General Purpose Audio Codec 2ADC / 2DAC Ch 28Pin SSOP T/R

Introduction

The TLC320AD77C is a cost competitive stereo analog-to-digital A/D and digital-to-analog D/A 24-bit delta-sigma converter for consumer applications which demand excellent audio performance. It has a wide variety of serial input options including left justified, right justified, IIS, or DSP data formats for 16-, 20-, or 24-bit input/output data. It has an extremely wide range of sampling rates starting at 16 kHz and increasing upwards to 96 kHz. Its internal bandgap design provides a very clean voltage reference. The TLC320AD77C is primarily designed for mini-disks, audio/video receivers, musical instruments, and other end-equipments requiring high-performance digital audio conversion.

Features

• 24-Bit Delta Sigma Stereo ADC and DAC:

   – 16-, 20-, or 24-Bit Input/Output Data

   – Wide Range of Sampling Rates: 16 kHz to 96 kHz

   – Master Clock: 256 fs or 384 fs

   – 3.3-V Power Supply Operation

   – Internal Bandgap Voltage Reference

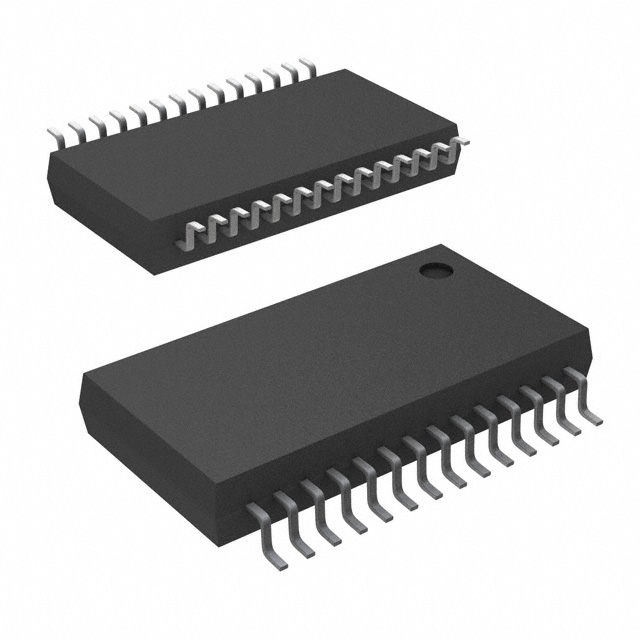

   – Economical 28-Pin DB SSOP Package

• Stereo ADC:

   – Differential Input

   – 128× Oversampling in normal speed mode

   – High Performance: 100-dB Signal-to-Noise Ratio SNR EIAJ, 100-dB Dynamic Range

   – Digital High-Pass Filter

• Stereo DAC:

   – Single-Ended Output

   – 128× Oversampling in normal speed mode

   – High Performance: 100-dB Signal-to-Noise Ratio SNR EIAJ, 100-dB Dynamic Range

• Digital De-Emphasis:

   – 32-kHz, 44.1-kHz, and 48-kHz Selection

• Special Features:

   – High Jitter Tolerance

   – Good Phase Characteristics

   – Excellent Power Supply Rejection Ratio
