TLE7185-1E

3相桥式驱动器IC 3-Phase Bridge Driver IC

Description:

The is a driver IC dedicated to control the 6 to 12 external MOSFETs forming the converter for high current 3 phase motor drives in the automotive sector. It incorporates features like short circuit detection, diagnosis and combines it with typical automotive specific requirements. The TLE7185-1E is especially designed for low battery voltage and therefore it is specified down to 5.5V supply voltage. Typical applications are cooling fan, water pump, electro-hydraulic and electric power steering. The TLE7185-1E is designed for 12V power net.

Summary of Features:

.

Drives 6 N-Channel Power MOSFETs

.

Separate control input for each MOSFET

.

Separate Source pin for each MOSFET

.

Integrated charge pump for operation at low battery voltages

.

Adjustable dead time

.

Shoot through protection and Shoot through option

.

Analog adjustable Short Circuit Protection levels

.

Low quiescent current mode

.

2 bit diagnosis / ERRx

.

Over temperature warning

.

Over voltage warning

.

Under voltage warning

.

Under voltage lockout

.

0 …95% Duty cycle of High Side MOSFETs

.

Green Product RoHS compliant

.

AEC Qualified

Benefits:

.

Excellent gate voltages down to 5.5V supply

.

Robust low cost design

.

Strong floating output stages

.

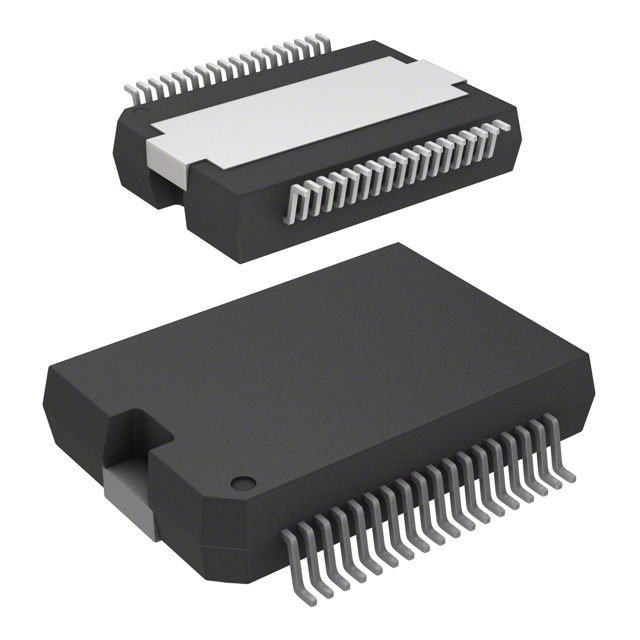

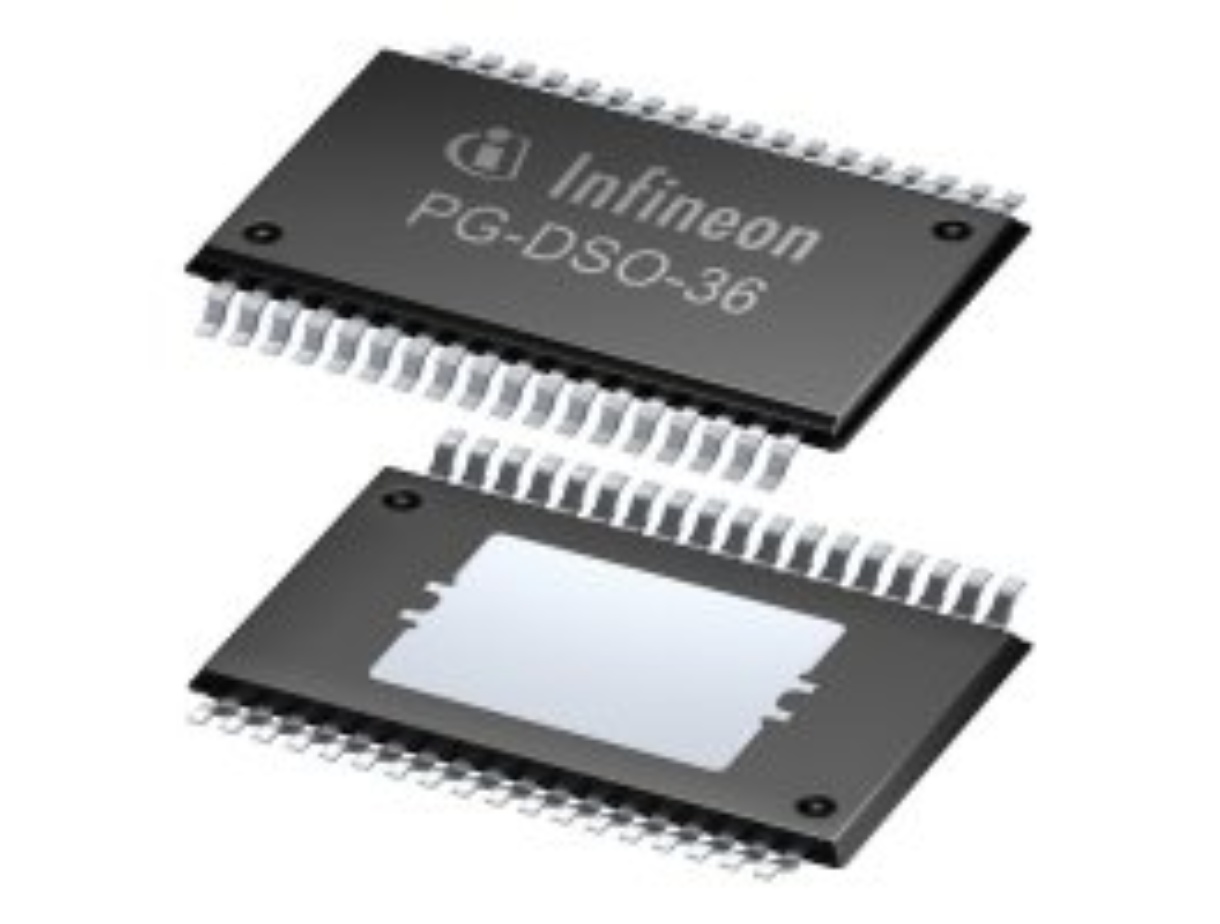

P-DSO  package with exposed pad for high ambient temperature and high number of temperature cycles robustness
