TLE7273-2G V50

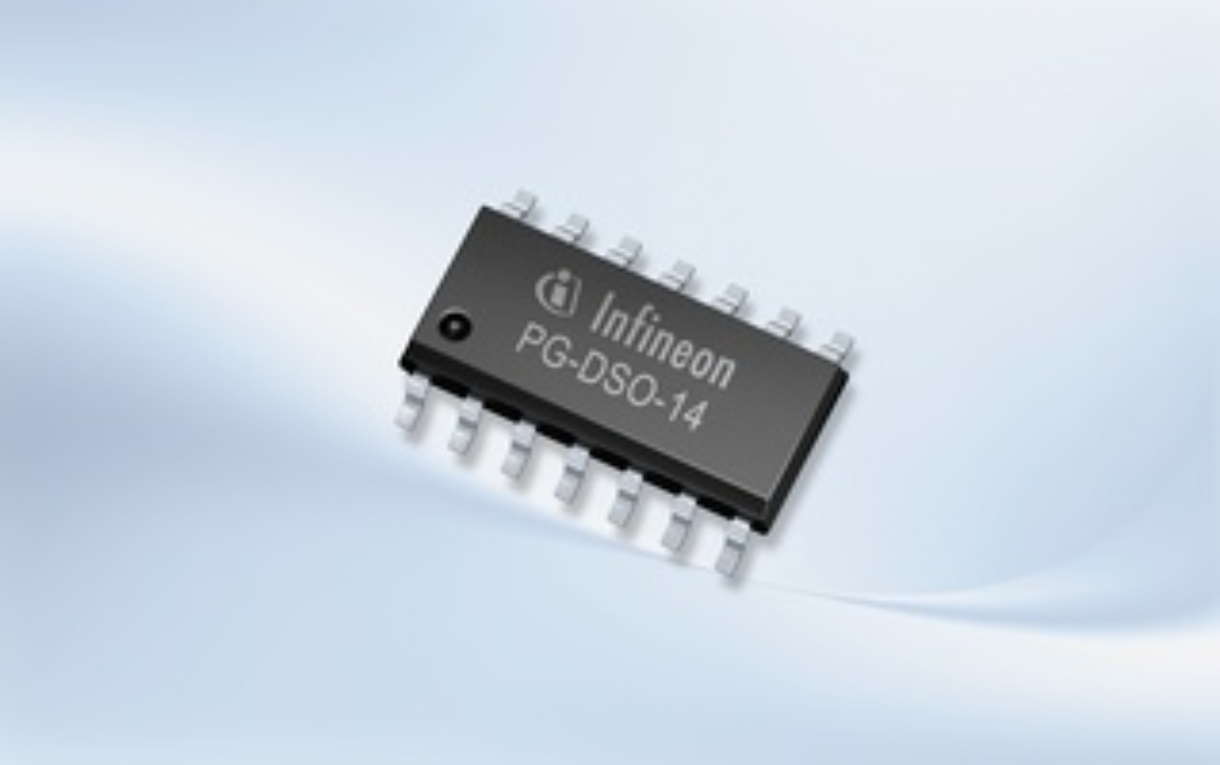

LDO.VREG POS 5,0V 0,2A 2% SO14 **

Description:

TheTLE7273-2 is a monolithic voltage regulator with integrated window watchdog and reset dedicated for microcontroller supplies under harsh automotive environment conditions. Due to its ultra low quiescent current, the TLE7273-2 is perfectly suited for applications that are permanently connected to battery. In addition, the regulator can be shut down via the Enable input causing the current consumption to drop below 3 µA. The TLE7273-2 is equipped with an output current limitation and an overtemperature shutdown, protecting the device against overload, short circuit and over-temperature. It operates in the wide junction temperature range from -40 °C to 150 °C.

Summary of Features:

.

Output Voltage 5 V, 3.3 V or 2.6 V

.

Output Voltage Tolerance ±2% Up To 180mA

.

Ultra Low Quiescent Current Consumption < 36 µA

.

Enable Function

.

Very Low Dropout Voltage

.

Reset With Adjustable Power-On delay

.

Window Watchdog With

.

Current Dependent Deactivation

.

Output Current Limitation

.

Wide Operation Range Up To 45 V

.

Wide Temperature Range From -40 °C To 150 °C

.

Overtemperature Shutdown

.

Green Product RoHS compliant

.

AEC Qualified

Benefits:

.

Wide input operation and temperature range

.

Very low quiescent current stable with 470nF ceramic capacitor

.

Very low dropout
