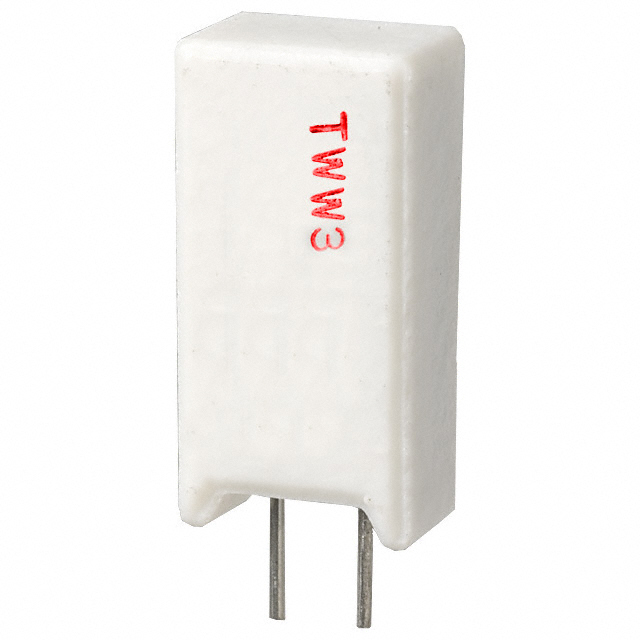

TWW3J7R5图片1
TWW3J7R5图片2
TWW3J7R5图片3
TWW3J7R5图片4
TWW3J7R5图片5
TWW3J7R5概述

7.5Ω ±5% 3W ±400ppm/℃

7.5 Ohms ±5% 3W Through Hole Resistor Radial Flame Proof, Safety Wirewound


得捷:
RES 7.5 OHM 5% 3W RADIAL


贸泽:
Wirewound Resistors - Through Hole 3watt 7.5ohm 5% Vertical Mount


艾睿:
Res Wirewound 7.5 Ohm 5% 3W ±400ppm/°C Ceramic RDL


Verical:
Res Wirewound 7.5 Ohm 5% 3W ±400ppm/C Ceramic RDL


MASTER:
Res Wirewound 7.5 Ohm 5% 3W ±400ppm/°C Ceramic RDL


Online Components:
Res Wirewound 7.5 Ohm 5% 3W ±400ppm/°C Ceramic RDL


Electro Sonic:
Res Wirewound 7.5 Ohm 5% 3W ±400ppm/°C Ceramic RDL


TWW3J7R5中文资料参数规格
技术参数

额定电压DC 250 V

容差 ±5 %

额定功率 3 W

产品系列 TWW

电阻 7.5 Ω

阻值偏差 ±5 %

额定电压 250 V

封装参数

安装方式 Through Hole

外形尺寸

长度 12.5 mm

宽度 9 mm

高度 25 mm

脚长度 3.5 mm

物理参数

工作温度 -55℃ ~ 275℃

温度系数 ±400 ppm/℃

其他

产品生命周期 Obsolete

包装方式 Bulk

最小包装 300

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

TWW3J7R5引脚图与封装图
TWW3J7R5引脚图

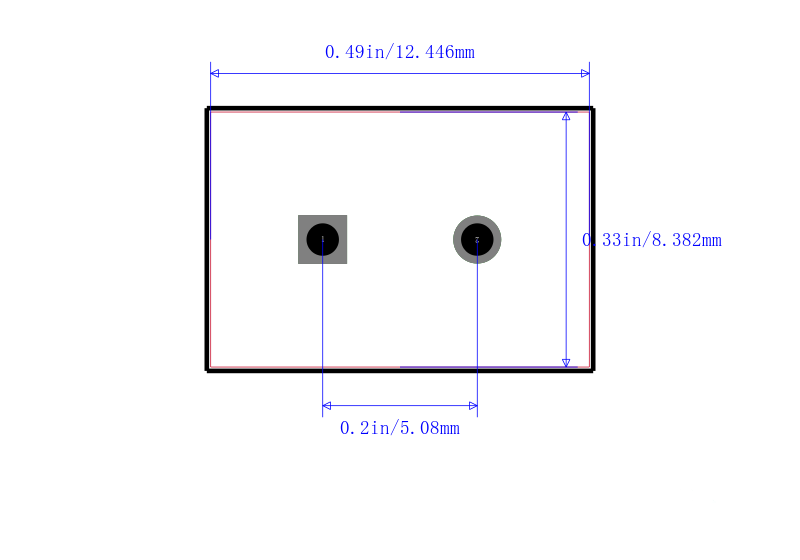

TWW3J7R5封装图
TWW3J7R5封装焊盘图
在线购买TWW3J7R5
型号: TWW3J7R5
制造商: Ohmite
描述:7.5Ω ±5% 3W ±400ppm/℃
替代型号TWW3J7R5
型号/品牌 代替类型 替代型号对比

TWW3J7R5

Ohmite

当前型号

当前型号

TWW3J7R5E

Ohmite

完全替代

TWW3J7R5和TWW3J7R5E的区别
