TWW5JR47

TWW5JR47图片1
TWW5JR47图片2
TWW5JR47图片3

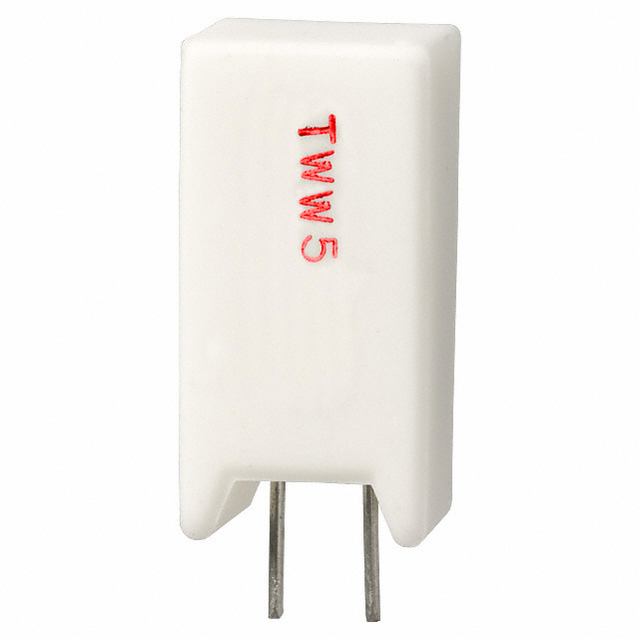

TWW5JR47图片4
TWW5JR47概述

0.47Ω ±5% 5W ±400ppm/℃

Res Wirewound 0.47 Ohm 5% 5W ±400ppm/°C Ceramic RDL


得捷:
RES 470M OHM 5% 5W RADIAL


贸泽:
Wirewound Resistors - Through Hole 5watt .47ohm 5% Vertical Mount


MASTER:
Res Wirewound 0.47 Ohm 5% 5W ±400ppm/°C Ceramic RDL


Online Components:
Res Wirewound 0.47 Ohm 5% 5W ±400ppm/°C Ceramic RDL


Electro Sonic:
Res Wirewound 0.47 Ohm 5% 5W ±400ppm/°C Ceramic RDL


TWW5JR47中文资料参数规格
技术参数

额定电压DC 250 V

容差 ±5 %

额定功率 5 W

产品系列 TWW

电阻 470 mΩ

阻值偏差 ±5 %

额定电压 350 V

封装参数

安装方式 Through Hole

封装 Radial

外形尺寸

长度 12.5 mm

宽度 9 mm

高度 25 mm

封装 Radial

物理参数

工作温度 -55℃ ~ 275℃

温度系数 ±400 ppm/℃

其他

产品生命周期 Obsolete

包装方式 Bulk

最小包装 300

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

在线购买TWW5JR47
型号: TWW5JR47
制造商: Ohmite
描述:0.47Ω ±5% 5W ±400ppm/℃
替代型号TWW5JR47
型号/品牌 代替类型 替代型号对比

TWW5JR47

Ohmite

当前型号

当前型号

TWW5JR47E

Ohmite

功能相似

TWW5JR47和TWW5JR47E的区别
