增强型JFET低功耗低偏移运算放大器 ENHANCED-JFET LOW-POWER LOW-OFFSET OPERATIONAL AMPLIFIERS
description
The TL03x series of JFET-input operational amplifiers offer improved dc and ac characteristics over the TL06x family of low-power BiFET operational amplifiers. On-chip zener trimming of offset voltage yields precision grades as low as 1.5 mV TL031A for greater accuracy in dc-coupled applications. The Texas Instruments improved BiFET process and optimized designs also yield improved bandwidths and slew rates without increased power consumption. The TL03x devices are pin-compatible with the TL06x and can be used to upgrade existing circuits or for optimal performance in new designs.
Direct Upgrades for the TL06x Low-Power BiFETs
Low Power Consumption . . . 6.5 mW/Channel Typ
On-Chip Offset-Voltage Trimming for Improved DC Performance1.5 mV, TL031A
Higher Slew Rate and Bandwidth Without Increased Power Consumption

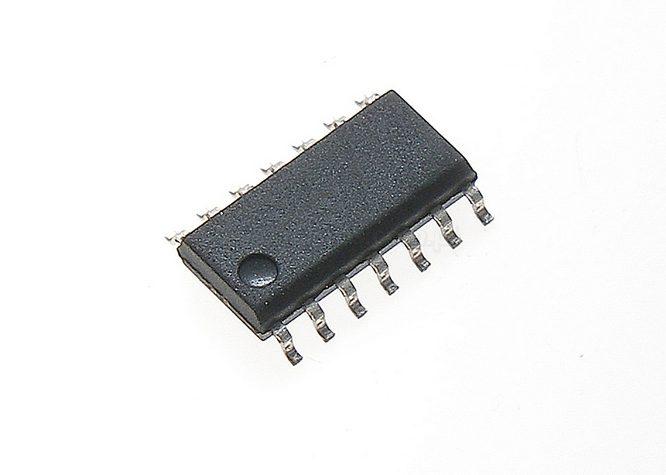

Available in TSSOP for Small Form-Factor Designs
