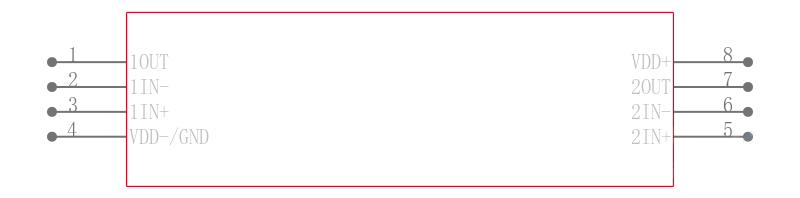

TLC2202CPE4

高级LinCMOSE低噪声精密运算放大器 Advanced LinCMOSE LOW-NOISE PRECISION OPERATIONAL AMPLIFIERS

description

The TLC220x, TLC220xA, TLC220xB, and TLC220xY are precision, low-noise operational amplifiers using Texas Instruments Advanced LinCMOSprocess. These devices combine the noise performance of the lowest-noise JFET amplifiers with the dc precision available previously only in bipolar amplifiers. The

Advanced LinCMOSprocess uses silicon-gate technology to obtain input offset voltage stability

with temperature and time that far exceeds that obtainable using metal-gate technology. In addition, this technology makes possible input impedance levels that meet or exceed levels offered by top-gate JFET and expensive dielectric-isolated devices.

B Grade Is 100% Tested for Noise

    30 nV/√HzMax at f = 10 Hz

    12 nV/√HzMax at f = 1 kHz

Low Input Offset Voltage. . . 500 µV Max

Excellent Offset Voltage Stability With Temperature. . . 0.5 µV/°C Typ

Rail-to-Rail Output Swing

Low Input Bias Current

    1 pA Typ at TA= 25°C

Common-Mode Input Voltage Range Includes the Negative Rail

Fully Specified For Both Single-Supply and Split-Supply Operation
