TS3V555IN

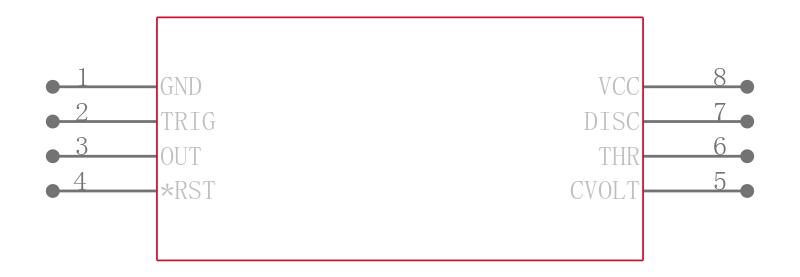

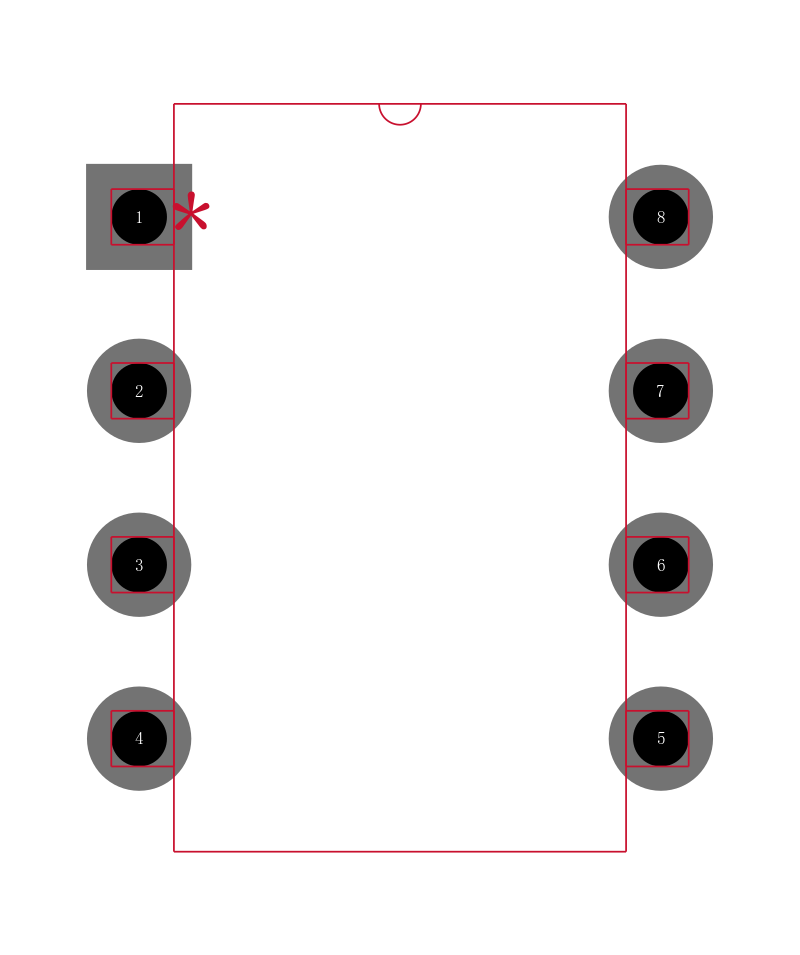

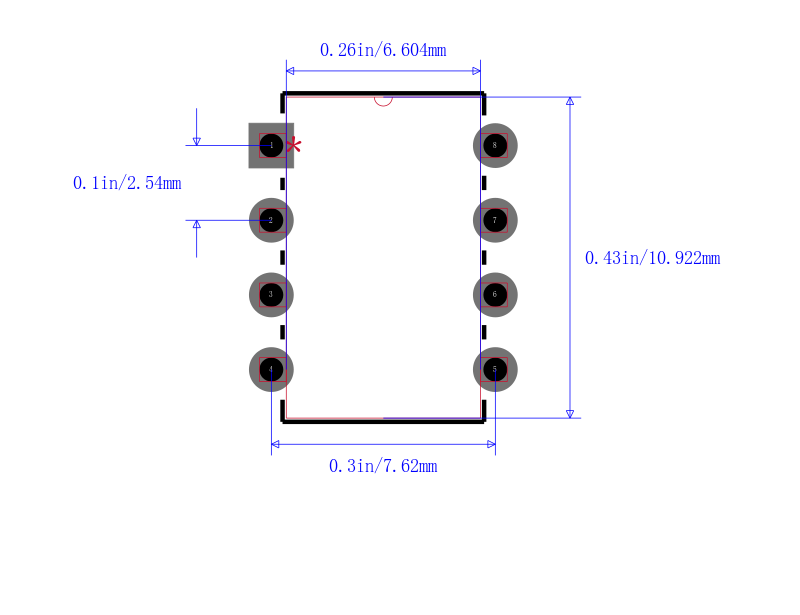

PULSE; RECTANGULAR, 2MHz, TIMER, PDIP8, PLASTIC, DIP-8

DESCRIPTION

The TS3V555 with its low consumption 90µA at VCC =3V isa singleCMOStimerdedicatedto 3.3V or battery supply specified at 3V and 5V offering also a high frequency fmax 2MHz at VCC = 3V and 2.7 MHz at VCC = 5V. Thus, either in monostable or astable mode, timing remains very accurate. Timing capacitors can also be minimized due to high input impedance 1012 Ω.

■ DEDICATED TO 3.3V OR BATTERY SUPPLY Specified at 3V and 5V

■ VERY LOW POWER CONSUMPTION : 90µA at VCC = 3V

■ WIDE SINGLE SUPPLY RANGE : +2.7V to +16V

■ HIGH OUTPUT CURRENT CAPABILITY

■ SUPPLY CURRENT SPIKES REDUCED DURING OUTPUT TRANSITIONS

■ HIGH INPUT IMPEDANCE : 1012 Ω

■ PIN-TO-PIN AND FUNCTIONALLY COMPATIBLE WITH BIPOLAR NE555 AND CMOS TS555

■ OUTPUT COMPATIBLE WITH TTL,CMOS AND LOGIC MOS
