易失性数字电位器, 10 kohm, 单, I2C, 线性, ± 20%, 2.7 V

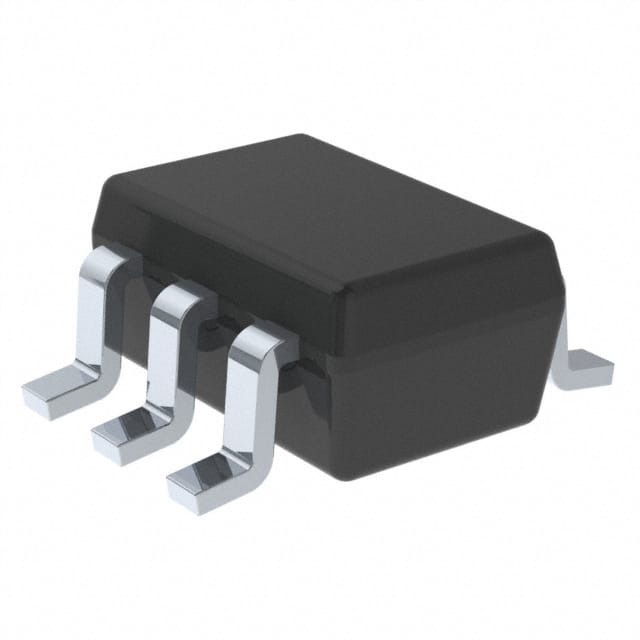

The TPL0401x-10-Q1 device is a single-channel, linear-taper digital potentiometer with 128 wiper positions. The TPL0401x-10-Q1 has the low terminal internal and connected to GND. The position of the wiper can be adjusted using an I2C interface. The TPL0401x-10-Q1 is available in a 6-pin SC70 package with a specified temperature range of –40°C to +125°C. The part has a 10-kΩ end-to-end resistance and can operate with a supply voltage range of 2.7 V to 5.5 V. This kind of product is widely used in setting the voltage reference for low power DDR3 memory.
The TPL0401x-10-Q1 has the low terminal internal and connected to GND.
容差 ±20 %
电路数 1
针脚数 128
电阻 10 kΩ
阻值偏差 ±20 %
带宽 2.80 MHz
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 6
封装 SC-70-6
封装 SC-70-6
工作温度 -40℃ ~ 125℃
温度系数 ±22 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 无铅
ECCN代码 EAR99
