开关稳压器 Enhanced Plastic 2A, 60V Step Down DC/DC Converter with Low Iq, Voltage Supervision and Reset 20-HTSSOP -55 to 125
The TPS54262-EP device is a 60-V, 2-A step-down switch-mode power supply with a low-power mode and a programmable voltage supervisor with an integrated NMOS switching FET. Integrated input voltage line feed forward topology improves line transient regulation of the voltage mode buck regulator. The regulator has a cycle-by-cycle current limit. The device also features low-power mode operation under light-load conditions which reduces the supply current to 50 µA typical. By pulling the EN pin low, the supply shutdown current is reduced to 1 µA typical.
An open-drain reset signal indicates when the nominal output drops below the reset threshold set by an external resistor divider network. The output voltage start-up ramp is controlled by a soft-start capacitor. There is an internal undervoltage shutown which is activated when the input supply ramps down to 2.6 V. The device features a short circuit protection circuit, which protects the device during overload condition and also has a thermal shutdown protection.
输出接口数 1
输出电压 0.9V ~ 18V
输出电流 2 A
开关频率 200kHz ~ 2.2MHz
输入电压Max 48 V
输入电压Min 3.6 V
输出电压Max 18 V
输出电压Min 0.8 V
工作温度Max 125 ℃
工作温度Min -55 ℃
输入电压 48 V

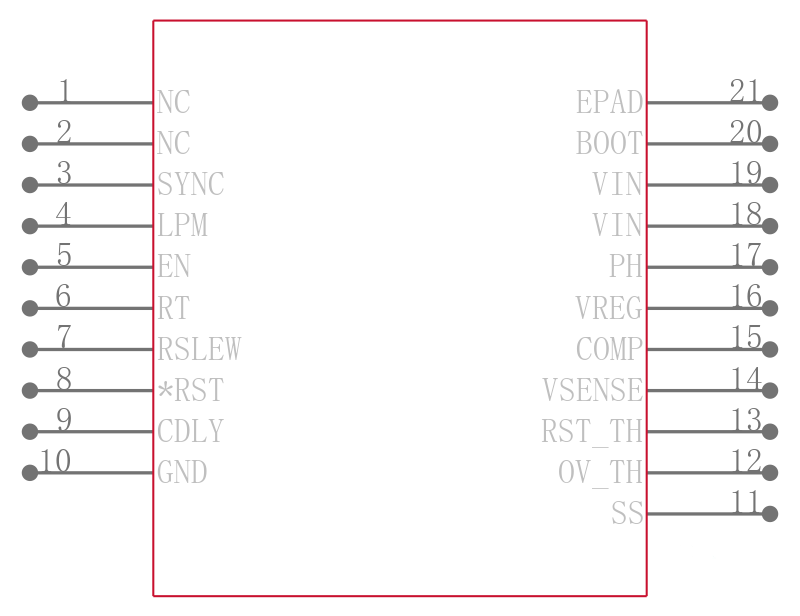

引脚数 20

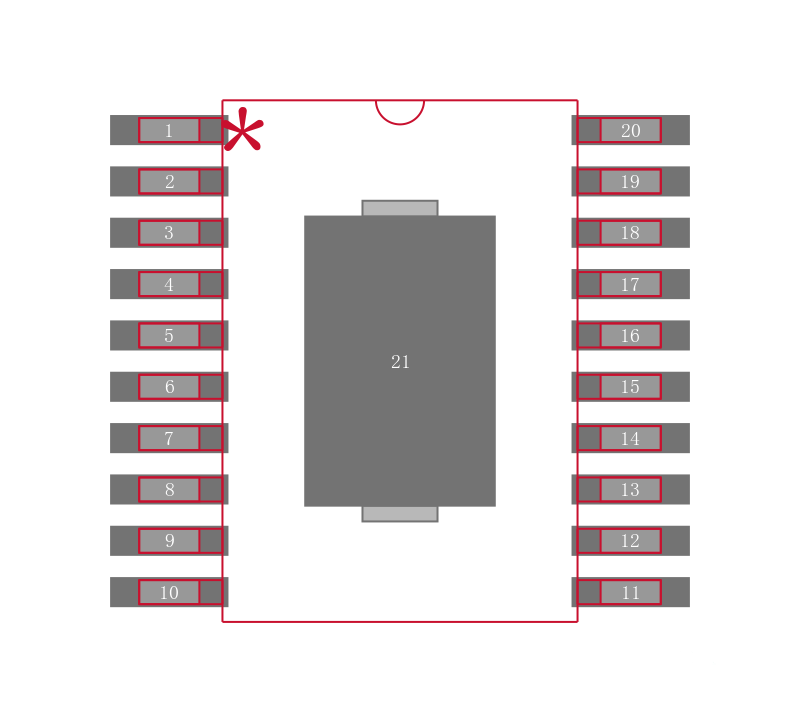

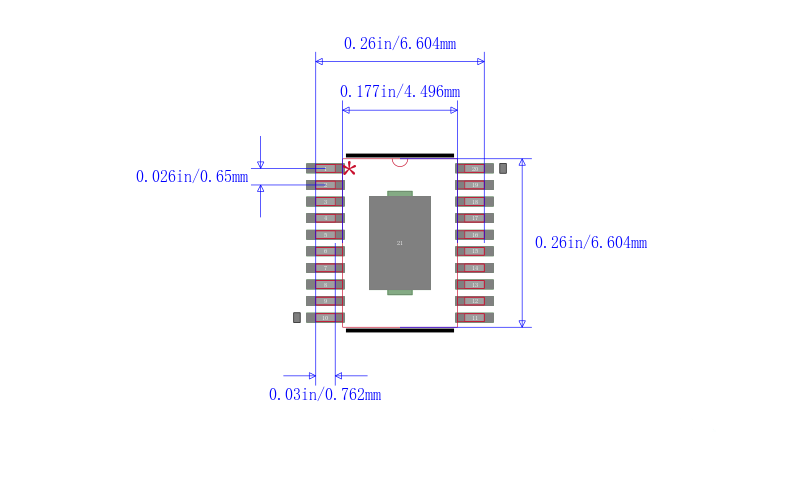

封装 HTSSOP-20
封装 HTSSOP-20
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
