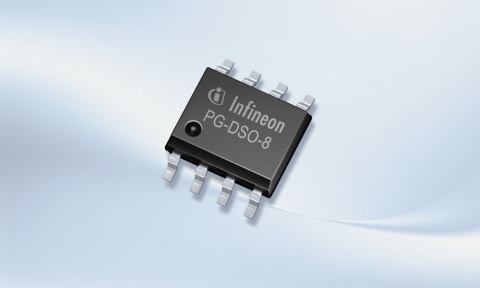

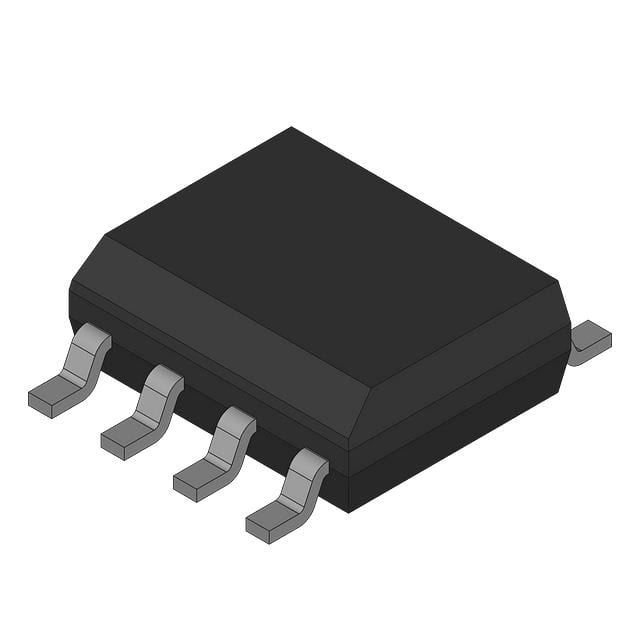

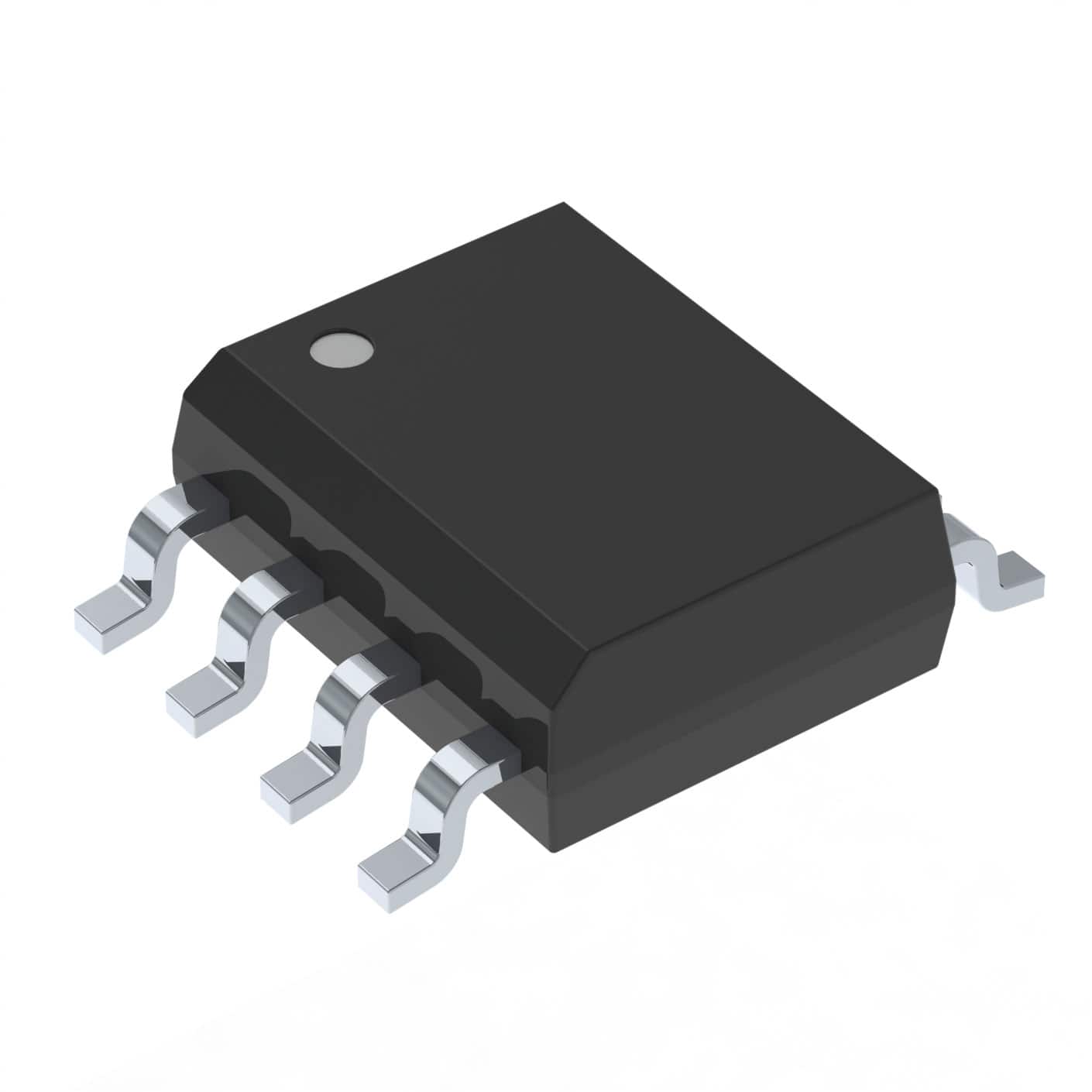

TLE42694GXUMA2

正 Vin=45V Vout=5V 100mA 70dB@100Hz

Description:

The TLE42694 is a monolithic integrated low dropout voltage regulator, especially designed for automotive applications. An input voltage up to 45 V is regulated to an output voltage of 5.0 V. The component is able to drive loads up to 150 mA. It is short-circuit proof by the implemented output current limitation and has an integrated over temperature shutdown. A reset signal is generated for an output voltage V Q,rt of typically 4.65 V. The power-on reset delay time can be programmed by the external delay capacitor. The additional sense comparator provides an early warning function: Any voltage e.g. the input voltage can be monitored, an under-voltage condition is indicated by setting the comparator’s output to low. The reset and sense output are internally connected to the output Q via a pull-up resistor. If these integrated resistors are not desired, the TLE42794 can be used instead of the TLE42694.

Summary of Features:

.

Output Voltage 5 V ± 2%

.

Output Current up to 150 mA

.

Very Low Current Consumption

.

Early Warning

.

Power-on and Under voltage Reset with Programmable Delay Time

.

Reset Low Down to V Q  = 1 V

.

Adjustable Reset Threshold

.

Very Low Dropout Voltage

.

Output Current Limitation

.

Reverse Polarity Protection

.

Over temperature Protection

.

Suitable for Use in Automotive Electronics

.

Wide Temperature Range from -40 °C up to 150 °C

.

Input Voltage Range from -42 V to 45 V

.

Integrated Pull-Up Resistors at Logic Outputs

.

Green Product RoHS compliant

.

AEC Qualified

Benefits:

.

Robust Protection Features

.

Wide Input Operation and Temperature Range
