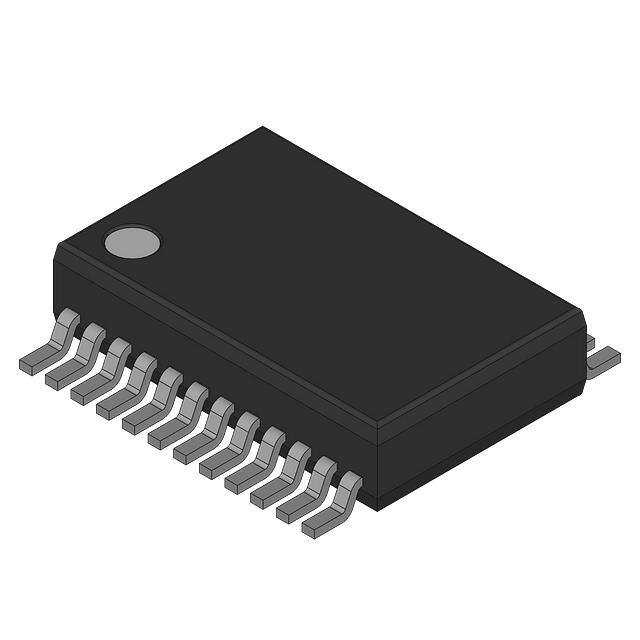

电机驱动器/控制器, DC, 10输出, 3 V至5.5 V电源, 40 V/2 A输出, SSOP-24
Description:
The TLE94110EL is a protected ten-fold half-bridge driver designed especially for automotive motion control applications such as Heating, Ventilation and Air Conditioning HVAC flap DC motor control. It is part of a larger family offering half-bridge drivers from three outputs to twelve outputs with direct interface or SPI interface. The half bridge drivers are designed to drive DC motor loads in sequential or parallel operation. Operation modes forward cw, reverse ccw, brake and high impedance are controlled from a 16-bit SPI interface. It offers diagnosis features such as short circuit, open load, power supply failure and overtemperature detection. In combination with its low quiescent current, this device is attractive among others for automotive applications. The small fine pitch exposed pad package, PG-SSOP-24, provides good thermal performance and reduces PCB-board space and costs.
Summary of Features:
输出接口数 10
输出电压 40 V
输出电流 2 A
针脚数 24
输出电流Max 2 A
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 3V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 24
封装 SSOP-24-4
封装 SSOP-24-4
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Side mirror x-y adjustment and mirror fold, Monostable and bistable Relays, 交流电机,直流电机,通用, HVAC Flap DC motors
RoHS标准 RoHS Compliant
含铅标准 Lead Free
