TNPW06031K43BEEN

TNPW06031K43BEEN图片1
TNPW06031K43BEEN图片2
TNPW06031K43BEEN概述

0603 1.43kΩ ±0.1% 0.1W1/10W ±25ppm/℃

RES 1.43K OHM 0.1% 1/8W 0603


贸泽:
Thin Film Resistors - SMD 1.43Kohms .1% 25ppm


艾睿:
This is a TNPW06031K43BEEN fixed single surface-mount resistor from Vishay. This product has a resistance value of 1.43K Ohm. This durable part has a power rating of 0.1 1/10 W. Its temperature coefficient is ±25 ppm/°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device is made with thin film technology. This product is 1.6 mm long, 0.45 mm tall and 0.85 mm deep. This part has an operating temperature of -55 to 125 °C.


立创商城:
1.43kΩ ±0.1% 100mW


TNPW06031K43BEEN中文资料参数规格
技术参数

额定功率 100 mW

产品系列 Vishay_Dale

电阻 1.43 KΩ

阻值偏差 ±0.1 %

工作温度Max 155 ℃

工作温度Min 55 ℃

额定电压 75 V

封装参数

封装公制 1608

封装 0603

外形尺寸

长度 1.55 mm

宽度 0.85 mm

高度 0.45 mm

封装公制 1608

封装 0603

物理参数

工作温度 55℃ ~ 125℃

温度系数 ±25 ppm/K

其他

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

TNPW06031K43BEEN引脚图与封装图
TNPW06031K43BEEN引脚图

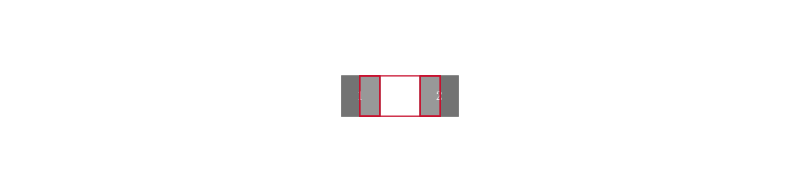

TNPW06031K43BEEN封装图

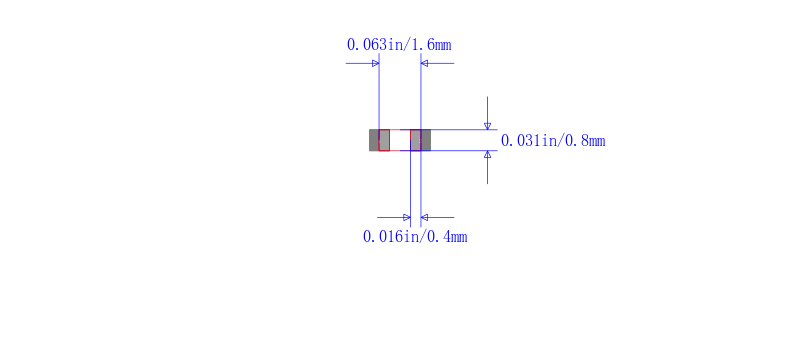

TNPW06031K43BEEN封装焊盘图
在线购买TNPW06031K43BEEN
型号: TNPW06031K43BEEN
制造商: VISHAY 威世
描述:0603 1.43kΩ ±0.1% 0.1W1/10W ±25ppm/℃
