齐纳二极管 500mW，TZS46xx 至 TZS47xx 系列，Vishay Semiconductor小信号齐纳二极管 齐纳电压指定为 50μA 给定的最大 Delta VZ 为 10μA 至 100μA 非常高的稳定性 低噪声 符合 AEC-Q101### 齐纳二极管，Vishay Semiconductor
齐纳 500mW，TZS46xx 至 TZS47xx 系列，Vishay Semiconductor
小信号
齐纳电压指定为 50μA
给定的最大 Delta VZ 为 10μA 至 100μA
非常高的稳定性
低噪声
符合 AEC-Q101
欧时:

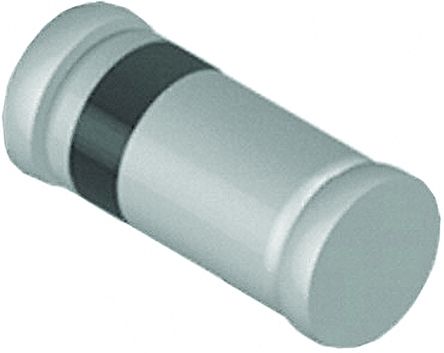

Vishay TZS4716-GS08 单路 齐纳二极管, 39V 5% 500 mW, 2引脚 SOD-80封装
艾睿:
Need to operate a diode in the reverse-breakdown region? No worries, use a voltage regulator TZS4716-GS08 zener diode from Vishay. Its maximum leakage current is 0.01 μA. Its test current is 0.05 mA. Its maximum power dissipation is 500 mW. This device has a maximum regulator current of 6.1 mA. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It is made in a single configuration. This zener device has a nominal voltage of 39 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -65 °C and a maximum of 175 °C.
Verical:
Zener Diode Single 39V 5% 500mW Automotive 2-Pin Quadro MELF SOD-80 T/R
