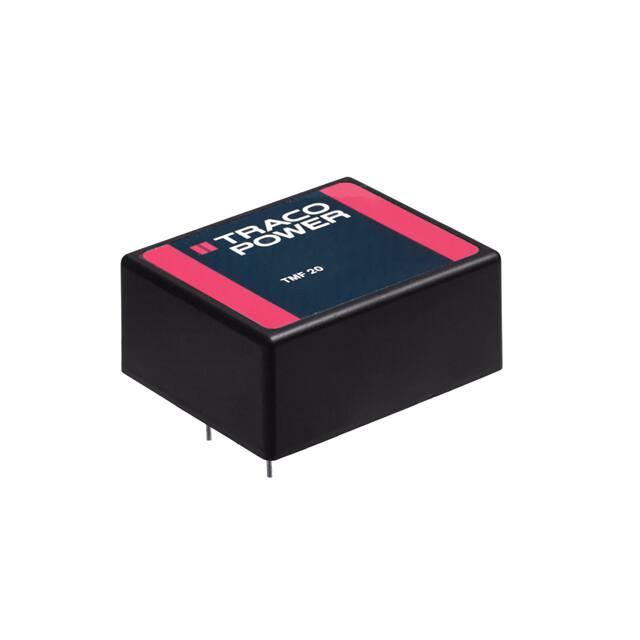

TMF 20124

AC/DC PCB安装电源 供电单元, 医用, 1输出, 20 W, 24 V, 833 mA

The TMF series from Tracopower are AC/DC power supply modules comes in full encapsulation plastic package for PCB mount. These modules are designed and manufactured based on workmanship standards and risk management to comply with the requirements for quality, reliability and safety of medical equipment. The units are approved to IEC/EN/ES 60601-1 edition 3.1 for 2 x MOPP Means Of Patient Protection and come with an ISO 14971 risk management file. The thermal management enables an operation within a wide temperature range of -25 to +70°C and the isolation system is designed and approved for an altitude of 5000m AMSL. This makes the power supplies suitable not only for stationary applications but also for transportable medical equipment.

.

Input voltage: 90 to 264VAC and 120 to 370VDC

.

Maximum output power: 5W/10W/20W and 30W

.

Nominal output voltage: 5VDC/12VDC/15VDC/24VDC

.

Maximum output current: 208mA, 333mA, 417mA and 1000mA

.

4000VAC isolation voltage, up to 88% efficiency, 47Hz to 63Hz input frequency

.

Ripples and noise 20MHz bandwidth, 5VDC is 100mVp-p maximum

.

Compact design and excellent EMC considerations

.

Protection against short-circuit, overload and over voltage

.

Acceptance criteria for electronic assemblies according to IPC-A-610 Level 3

.

Low leakage current <100µA for BF application, protection class II prepared, 5 year product warranty
