LED照明驱动器 LITIX
Description:
LITIX TM Basic is a three channel high side driver IC with integrated output stages. It is designed to control LEDs with a current up to 120 mA. In typical automotive applications the device is capable to drive i.e. 3 red LEDs per chain total 9 LEDs with a current up to 60mA, which is limited by thermal cooling aspects. The output current is controlled practically independent of load and supply voltage changes.
Summary of Features:
- .
- 3 Channel device with integrated output stages current sources, optimized to drive LEDs
- .
- Output current up to 120mA per channel
- .
- Low current consumption in sleep mode
- .
- PWM-operation supported via VS- and EN-pin
- .
- Output current adjustable via external low power resistor and
- .
- possibility to connect PTC resistor for LED protection during over temperature conditions
- .
- Reverse polarity protection
- .
- Overload protection
- .
- Undervoltage detection
- .
- Wide temperature range: -40 °C < T j < 150 °C
- .

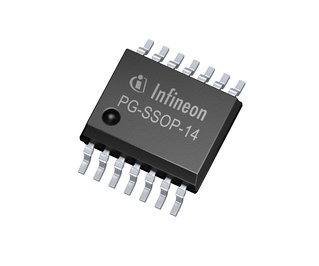

- PG-SSOP14 package with exposed heatslug
- .
- Green Product RoHS compliant
- .
- AEC Qualified
Target Applications:
Designed for exterior LED lighting applications such as tail/brake light, turn indicator, position light, side marker,... The device is also well suited for interior LED lighting applications such as ambient lighting, interior illumination and dash board lighting.
