低压差稳压器 3A High-Accuracy 0.75% Low-Noise 4.4-++VRMS LDO Regulator 20-VQFN -40 to 125
The TPS7A84A is a low-noise, low-dropout linear regulator LDO capable of sourcing 3 A with only 180-mV of maximum dropout. The device output voltage is pin-programmable from 0.8 V to 3.95 V and adjustable from 0.8 V to 5.15 V using an external resistor divider.
The combination of low-noise, high-PSRR, and high output-current capability makes the TPS7A84A ideal to power noise-sensitive components such as those found in high-speed communications, video, medical, or test and measurement applications. The high performance of the TPS7A84A limits power-supply-generated phase noise and clock jitter, making this device ideal for powering high-performance serializer and deserializer SerDes, analog-to-digital converters ADCs, digital-to-analog converters DACs, and RF components. Specifically, RF amplifiers benefit from the high-performance and > 5-V output capability of the device.
For digital loads [such as application-specific integrated circuits ASICs, field-programmable gate arrays FPGAs, and digital signal processors DSPs] requiring low-input voltage, low-output LILO voltage operation, the exceptional accuracy 0.75% over line, load, and temperature, remote sensing, excellent transient performance, and soft-start capabilities of the TPS7A84A ensure optimal system performance.
The versatility of the TPS7A84A makes the device a component of choice for many demanding applications.
输出接口数 1
输出电压 0.8V ~ 5.15V
输出电流 3 A
耗散功率 0.9 W
跌落电压 0.155V @3A,0.11V @3A,0.225V @3A,0.27V @3A
输入电压Max 6.5 V
输入电压Min 1.1 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
引脚数 20

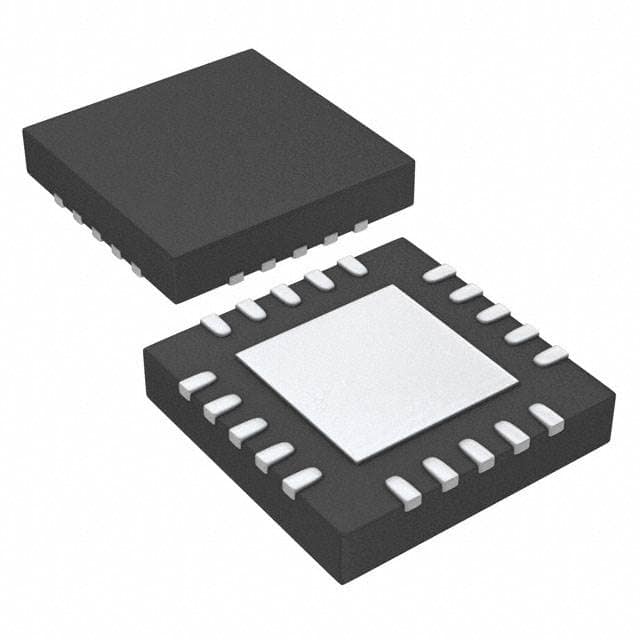

封装 VQFN-20
封装 VQFN-20
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
