TMC2660-BOB

分线板, TMC2660步进电源驱动器,

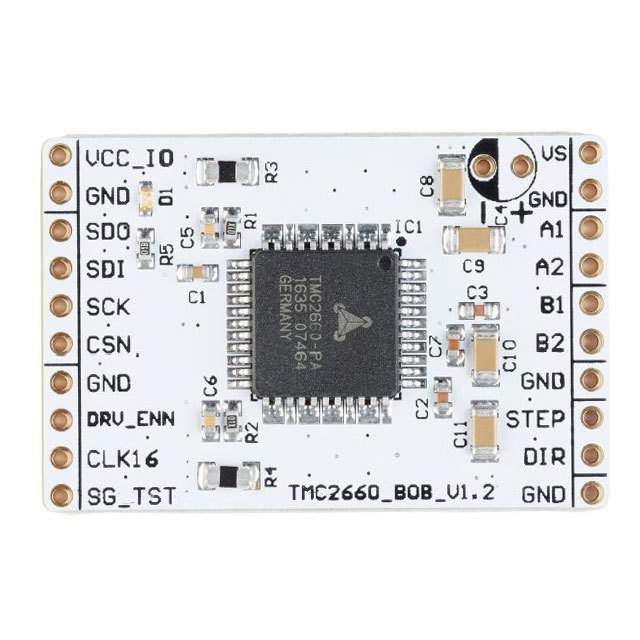

The TMC2660 breakout board is a development board with the dedicated TMC2660-PA stepper power driver chip. It is designed to give users the chance to rapidly prototype their applications making it possible to immediately check how the motor performs with TMC chips while developing the application"s software.

.

9 to 28V supply voltage limited by the MOSFETs

.

Iphase,RMS up to 2A

.

Configuration via SPI, control via step/direction

.

Optional electrolyte cap at supply rail

.

Board width 1.5", board height 1.0"

.

2x10 pin 0.1" header rows for pins/connectors
