UTG01823SH

UTG01823SH图片1
UTG01823SH图片2
UTG01823SH图片3
UTG01823SH图片4
UTG01823SH图片5
UTG01823SH概述

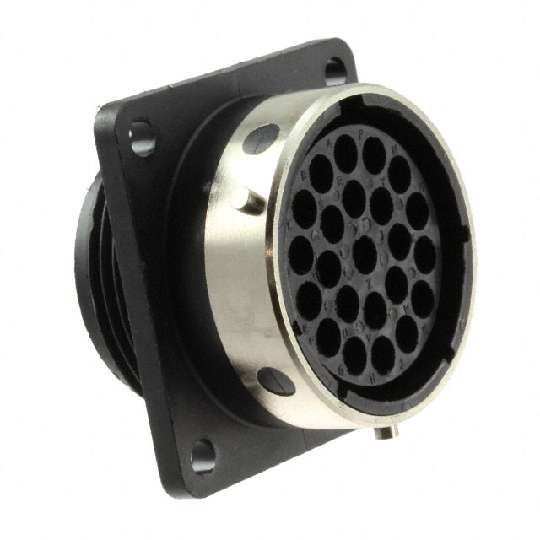

SOURIAU  UTG01823SH  圆形连接器外壳, Metalok Bantam Trim Trio UTG系列, 插座, 23 路, 母, 面板安装, 18-23

23 Position Circular Connector Receptacle Housing Panel Mount


欧时:
Female square flange receptacle, IP65


贸泽:
Standard Circular Connector 23P Sckt Receptacle Wall Mount Size 18


e络盟:
SOURIAU  UTG01823SH  圆形连接器外壳, Metalok Bantam Trim Trio UTG系列, 插座, 23 路, 母, 面板安装, 18-23


艾睿:
Look how much better your peripherals will perform when attaching this cpc with metal coupling UTG01823SH connector from Souriau. Its shell size is 18-23. It has a straight body orientation. It has a receptacle type gender. This socket type connector has 23 socket type contacts. This circular connector has an operating temperature of -55 to 125 °C. This product is 24.3 mm long, 33.3 mm tall and 33.3 mm deep. It uses the crimp termination method.


Chip1Stop:
Conn CPC With Metal Coupling SKT 23 POS Crimp ST Wall Mount 23 Terminal 1 Port Bag


Newark:
# SOURIAU  UTG01823SH  Circular Connector, Trim Trio UTG Series, Wall Mount Receptacle, 23 Contacts


UTG01823SH中文资料参数规格
技术参数

触点数 23

极性 Female

绝缘电阻 5000 MΩ

针脚数 23

拔插次数 500

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Panel

封装 Metal

外形尺寸

高度 33.3 mm

封装 Metal

物理参数

外壳颜色 Black, Silver

工作温度 -55℃ ~ 125℃

外壳材质 Plastic

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

在线购买UTG01823SH
型号: UTG01823SH
制造商: Souriau 苏里奥
描述:SOURIAU  UTG01823SH  圆形连接器外壳, Metalok Bantam Trim Trio UTG系列, 插座, 23 路, 母, 面板安装, 18-23
