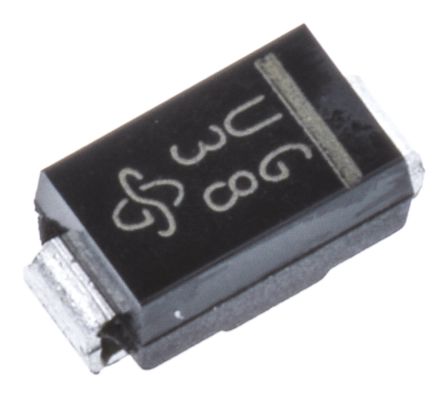

VISHAY US1G-E3/5AT 快速/超快二极管, 单, 400 V, 1 A, 1 V, 50 ns, 30 A
The is a surface mount ultrafast Rectifier Diode with matte tin-plated leads terminals, UL94V-0 flame-rated moulding compound case and colour band denotes cathode end polarity. Glass passivated chip junction, ultrafast reverse recovery time and high forward surge capability. Ideal for automated placement.
正向电压 1V @1A
反向恢复时间 50 ns
正向电流 1 A
最大正向浪涌电流(Ifsm) 30 A
正向电压Max 1 V
正向电流Max 1 A
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.5 mm
宽度 2.79 mm
高度 2.09 mm
封装 DO-214AC
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 消费电子产品, 车用, Communications & Networking, Power Management, 通信与网络, Consumer Electronics, 计算机和计算机周边, Automotive, Computers & Computer Peripherals, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
US1G-E3/5AT Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
US1G-E3 威世 | 完全替代 | US1G-E3/5AT和US1G-E3的区别 |
US1GHE3/61T 威世 | 类似代替 | US1G-E3/5AT和US1GHE3/61T的区别 |
US1GHE3/5AT 威世 | 类似代替 | US1G-E3/5AT和US1GHE3/5AT的区别 |
