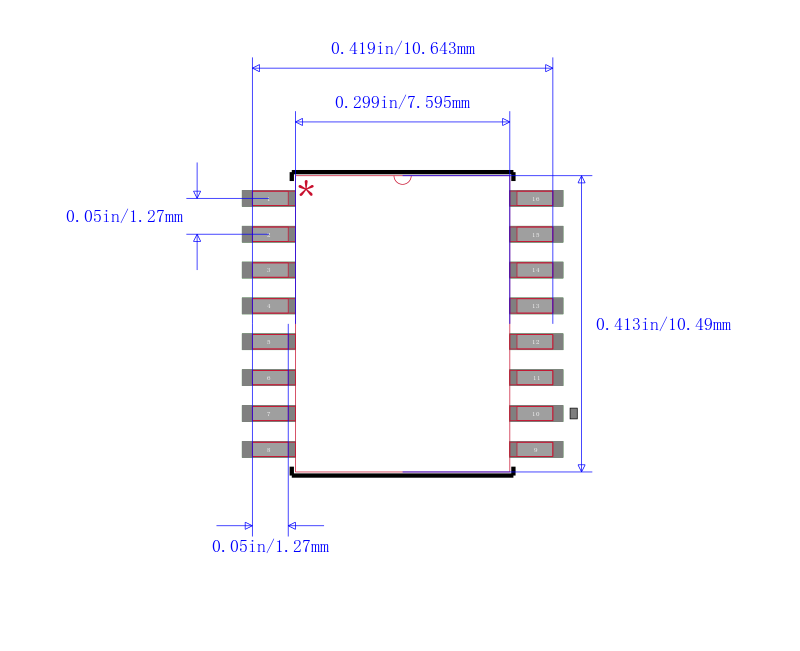

UC3833DWG4

精密低压降线性控制器 Precision Low Dropout Linear Controllers

DESCRIPON

The UC2832 and UC3833 series ofprecision linear regulators include all the control functions required in the design of very low dropout linear regulators. Additionally, they feature an innovative duty-ratio current limiting technique which provides peak load capability while limiting the average power dissipation of the external pass transistor during fault conditions. When the load current reaches an accurately programmed threshold, a gated-astable timer is enabled, which switches the regulator’s pass device off and on at an externally programmable duty-ratio. During the on-time of the pass element, the output current is limited to a value slightly higher than the trip threshold of the duty-ratio timer. The constant-current-limit is programmable on the UCx832 to allow higher peak current during the on-time of the pass device. With duty-ratio control, high initial load demands and short circuit protection may both be accom modated without extra heat sinking or foldback current limiting. Additionally, if the timer pin is grounded, the duty-ratio timer is disabled, and the IC operates n constant-voltage/constant-current regulating mode.

FEATURES

• Precision 1% Reference

• Over-Current Sense Threshold Accurate to 5%

• Programmable Duty-Ratio Over-Current Protection

• 4.5 V to 36 V Operation

• 100mA Output Drive,Source,or Sink

• Under-Voltage Lockout Additional Features of the UC2832 series:

• Adjustable Current Limit to Current Sense Ratio

• Separate +VIN terminal

• Programmable Driver Current Limit

• Access to VREF and E/A+

• Logic-Level Disable Input
