开关控制器 High Speed PWM Controller
DESCRIPON
The UC1824 family of PWM control ICs is optimized for high frequency switched mode power supply applications. Particular care was given to minimizing propagation delays through the comparators and logic circuitry while maximizing bandwidth and slew rate of the error amplifier. This controller is designed for use in either current mode or voltage mode systems with the capability for input voltage feed-forward.
FEATURES
• Complementary Outputs
• Practical Operation Switching Frequencies to 1MHz
• 50ns Propagation Delay to Output
• High Current Dual Totem Pole Outputs 1.5A Peak
• Wide Bandwidth Error Amplifier
• Fully Latched Logic with Double Pulse Suppression
• Pulse-by-Pulse Current Limiting
• Soft Start / Max. Duty Cycle Control
• Under-Voltage Lockout with Hysteresis
• Low Start Up Current 1.1 mA
• Trimmed Bandgap Reference 5.1V ± 1%
频率 1.00 MHz
输出接口数 1
输出电压 5.1 V
输出电流 500 A
耗散功率 1000 mW
调节输出数 2
开关频率 1000 kHz
拓扑结构 Buck, Boost
占空比 100 %
最大占空比 0.85
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 1000 mW

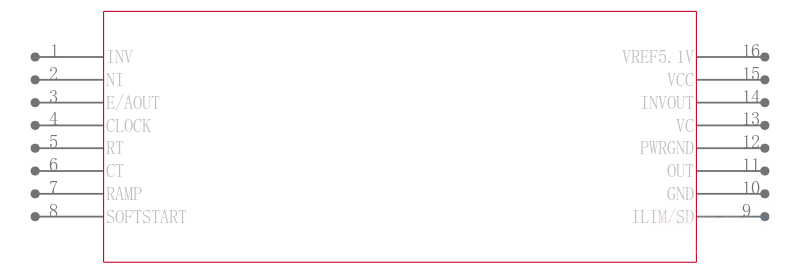

引脚数 16
封装 SOIC-16
长度 10.28 mm
高度 2.35 mm
封装 SOIC-16
工作温度 0℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UC3824DWTR TI 德州仪器 | 当前型号 | 当前型号 |
UC2824DW 德州仪器 | 类似代替 | UC3824DWTR和UC2824DW的区别 |
UC3824DW 德州仪器 | 类似代替 | UC3824DWTR和UC3824DW的区别 |
UC2824DWG4 德州仪器 | 类似代替 | UC3824DWTR和UC2824DWG4的区别 |
