STMICROELECTRONICS ULN2069B 双极晶体管阵列, 达林顿, NPN, 80 V, 1 W, 1.5 A, DIP
The is a 80V Quad Darlington Switch designed to interface logic to a wide variety of high current and high voltage loads. This switch contains four NPN Darlington switches delivering up to 1.5A with a specified minimum breakdown of 50V and a sustaining voltage of 35V measured at 100mA. It contains integral suppression diodes for inductive loads have common emitters. The input of switch is compatible with popular 5V logic families and includes a pre-driver stage to reduce loading on the control logic.
- .
- Integral suppression diodes
- .
- Versions compatible with all popular logic families
额定电压DC 50.0 V
额定电流 1.50 A
输出电压 50 V
输出电流 1.5 A
通道数 4

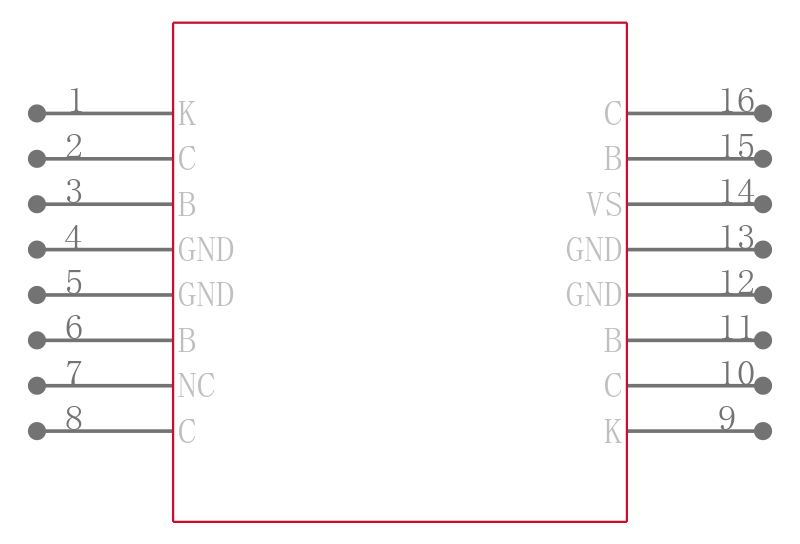

针脚数 16
极性 NPN
耗散功率 1 W
击穿电压集电极-发射极 80 V
额定功率Max 1 W
工作温度Max 85 ℃
工作温度Min -20 ℃
耗散功率Max 4300 mW
电源电压 50 V
安装方式 Through Hole
引脚数 16

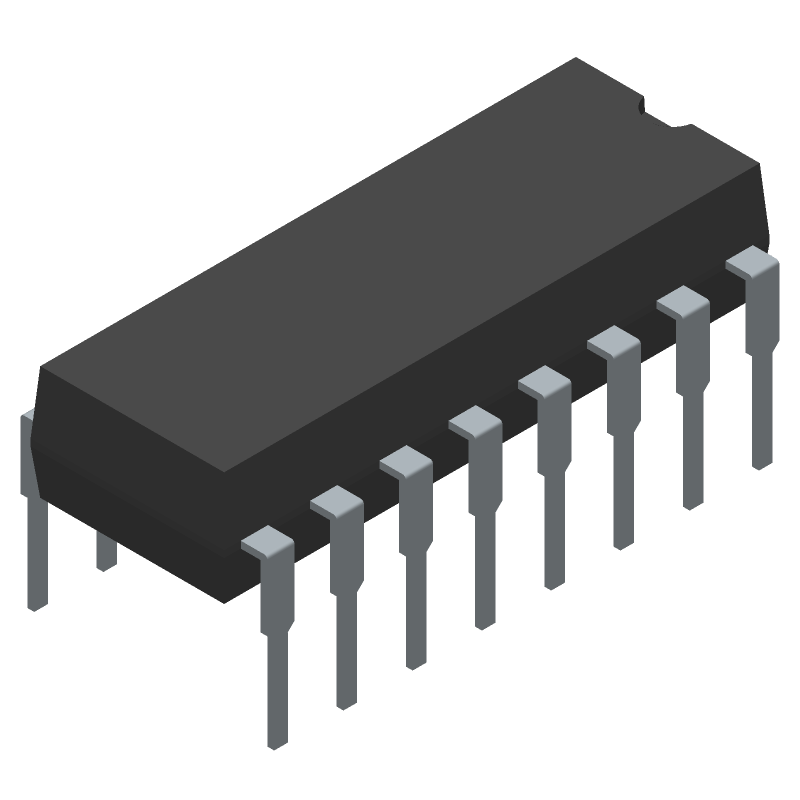

封装 DIP-16
封装 DIP-16
工作温度 -20℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
