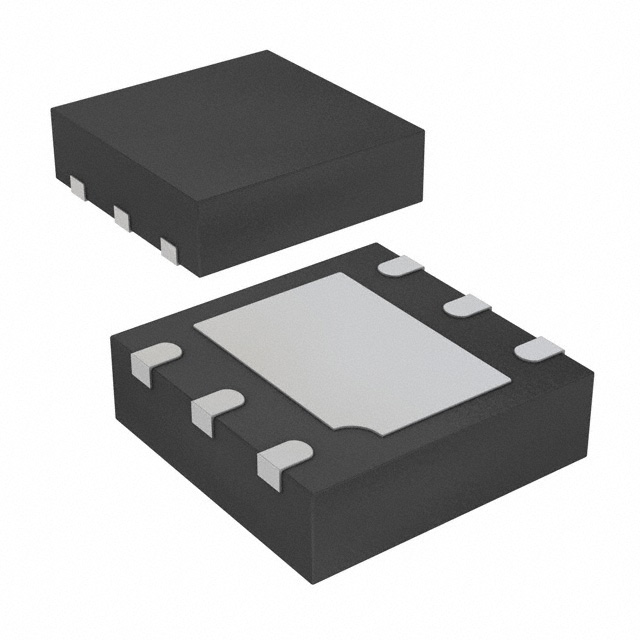

STMICROELECTRONICS USBULC6-2M6 静电保护装置, 排列, 17 V, UQFN, 6 引脚
USB 端口 ESD 保护
### 瞬态电压抑制器,STMicroelectronics
欧时:
### USB 端口数据线瞬时过电压保护,STMicroelectronics通用串行总线端口应用, RS-423 接口 RS-485 接口 ISDN 设备 T1/E1 线路卡 HDSL / ASDL 接口 峰值脉冲功率耗散:PPP = 500W 8/20μs ### 瞬态电压抑制器,STMicroelectronics
得捷:
TVS DIODE 5VWM 17VC 6UQFN
立创商城:
USBULC6-2M6
艾睿:
Protect your electronic components and circuit from dangerous electrostatic discharge with this diode array USBULC6-2M6 ESD protection device from STMicroelectronics. This ESD diode has a maximum ESD protection device voltage of ±15@Air Gap/±15@Contact Disc kV. This device&s;s maximum clamping voltage is 17 V. This ESD diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It is made in a dual configuration. Its capacitance value is 1.1 pF.
安富利:
ESD Suppressor Diode Arrays ±15KV 6-Pin UQFN T/R
富昌:
USBULC6 系列 6 V 2 沟道 表面贴装 双向 ESD 保护 - UQFN-6
Chip1Stop:
ESD Suppressor Diode Arrays 15KV 6-Pin UQFN T/R
Verical:
ESD Suppressor Diode Diode Array Uni-Dir 5V 6-Pin UQFN T/R
Newark:
# STMICROELECTRONICS USBULC6-2M6 ESD Protection Device, Array, 17 V, UQFN, 6 Pins
Win Source:
TVS DIODE 5VWM 17VC 6VFQFPN
电容 1.1 pF
电路数 2
针脚数 6
钳位电压 17 V
最小反向击穿电压 6 V
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 6
封装 UQFN-6
长度 1.45 mm
宽度 1 mm
高度 0.55 mm
封装 UQFN-6
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 以太网, 医用, Industrial, Communications & Networking, 便携式器材, Computers & Computer Peripherals, 通信与网络, 成像, Imaging, Video & Vision, Portable Devices, 视频和目视, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
USBULC6-2M6 ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
DVIULC6-2M6 意法半导体 | 类似代替 | USBULC6-2M6和DVIULC6-2M6的区别 |
HDMIULC6-2M6 意法半导体 | 类似代替 | USBULC6-2M6和HDMIULC6-2M6的区别 |
USBLC6-2P6 意法半导体 | 功能相似 | USBULC6-2M6和USBLC6-2P6的区别 |
