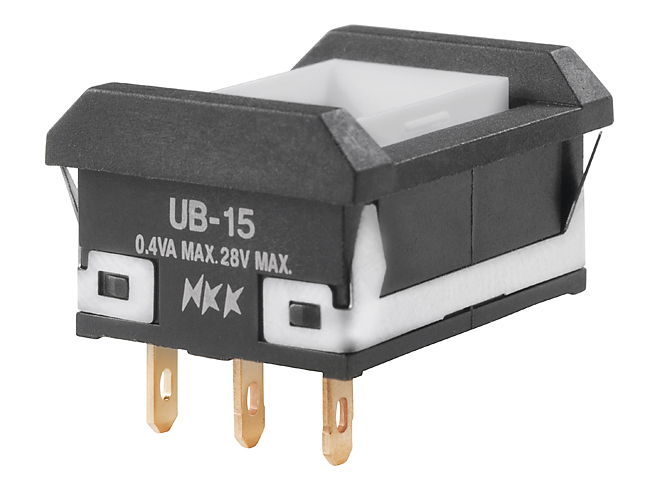

Switch Push Button ON ON SPDT Rectangular Button 0.1A 28VAC 28VDC 0.4VA Momentary Contact Panel Mount Solder Lug
Series UB low profile pushbuttons feature integral LED illumination, a choice of square or rectangular shapes, a choice of PCB or panel snap-in mounts and snap-acting contacts in momentary or maintained actions. Optional switch guards can prevent accidental operation. Optional UL recognized and CSA certified marks on switch may be ordered. Contact your Allied sales representative for details.
得捷:
SWITCH PUSH SPDT 0.4VA 28V
欧时:
Pushbuttons SPDT,0.4VA MAX. 28V MAX. UB
立创商城:
UB15NBKG01N
贸泽:
Pushbutton Switches RECT W/BARIER ONON SOLDER LUG BODY ONLY
艾睿:
Switch Push Button ON ON SPDT Rectangular Button 0.1A 28VAC 28VDC 0.4VA Momentary Contact Panel Mount Solder Lug
Allied Electronics:
LOW PROFILE PUSHBUTTON/PC AND SOLDER
Verical:
Switch Push Button ON ON SPDT Rectangular Button 0.1A 28VAC 28VDC 0.4VA Momentary Contact Panel Mount Solder Lug
Powell:
LOW PROFILE PUSHBUTTON/ILLUMINATED/PC AND SOLDER
额定电压DC 28 V
额定电压AC 28 V
额定电流 0.0142 A
排数 1
额定功率 0.4 VA
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 70 ℃
工作温度Min -20 ℃
额定电压 28 VDC
接触电阻Max 100 mΩ
安装方式 Solder Lug, Snap-In, Panel
封装 -
长度 15.8 mm
高度 17.5 mm
封装 -
触点材质 Copper
工作温度 -20℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
