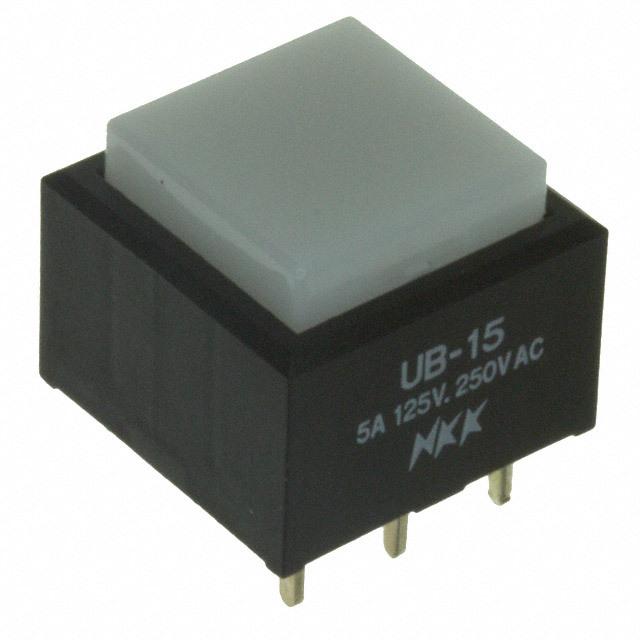

NKK SWITCHES UB15SKW03N-B 按钮开关, 非发光, SPDT, 5A, 250VAC
Series UB low profile pushbuttons feature integral LED illumination, a choice of square or rectangular shapes, a choice of PCB or panel snap-in mounts and snap-acting contacts in momentary or maintained actions. Optional switch guards can prevent accidental operation. Optional UL recognized and CSA certified marks on switch may be ordered. Contact your Allied sales representative for details.
立创商城:
UB15SKW03N-B
e络盟:
按钮开关, 非发光, SPDT, 5A, 250VAC
艾睿:
Switch Push Button ON ON SPDT Square Button 5A 250VAC 30VDC Momentary Contact PC Pins Thru-Hole
Allied Electronics:
LOW PROFILE PUSHBUTTON/PC AND SOLDER
Verical:
Switch Push Button ON ON SPDT Square Button 5A 250VAC 30VDC Momentary Contact PC Pins Thru-Hole
Newark:
# NKK SWITCHES UB15SKW03N-B Pushbutton Switch, SPDT, On-On, 250 V, 30 V, 5 A, Through Hole
Powell:
LOW PROFILE PUSHBUTTON/ILLUMINATED/PC AND SOLDER
额定电压DC 30 V
接触器类型 Button
额定电压AC 125 V
额定电流 5 A
排数 1
方向 Vertical
触点类型 SPDT
额定电流Max 5A @250VAC, 30VDC
工作温度Max 70 ℃
工作温度Min -20 ℃
额定电压 125 VAC
接触电阻Max 50 mΩ
安装方式 Through Hole
封装 -
长度 15.24 mm
宽度 15.24 mm
高度 12.5 mm
封装 -
触点材质 Silver Alloy
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
